| Part Number | TIC-L003-11 |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WithOUT LEDS |
| Latch | DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With OR WithOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |

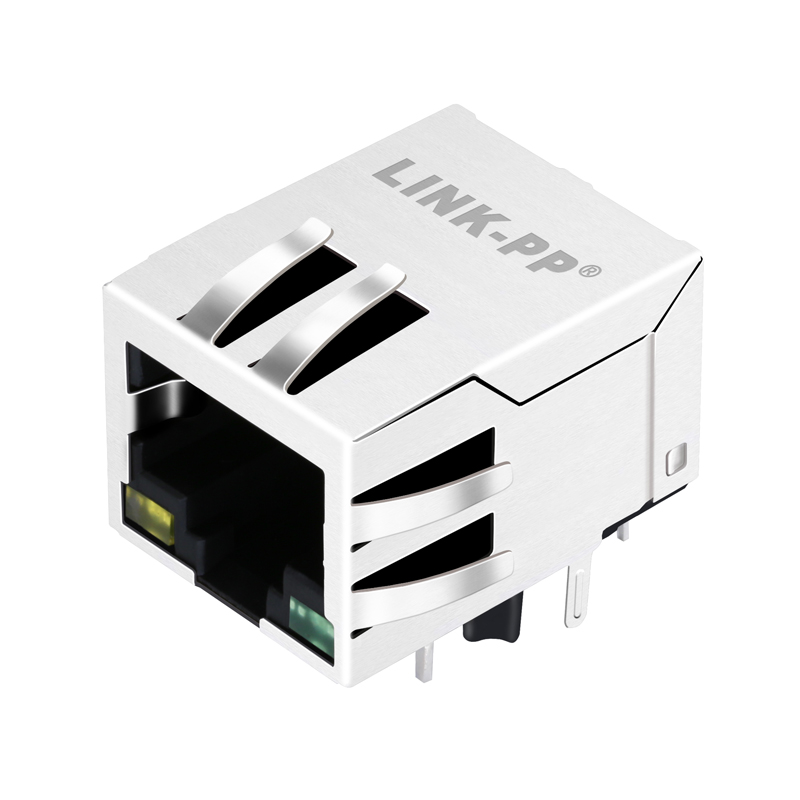

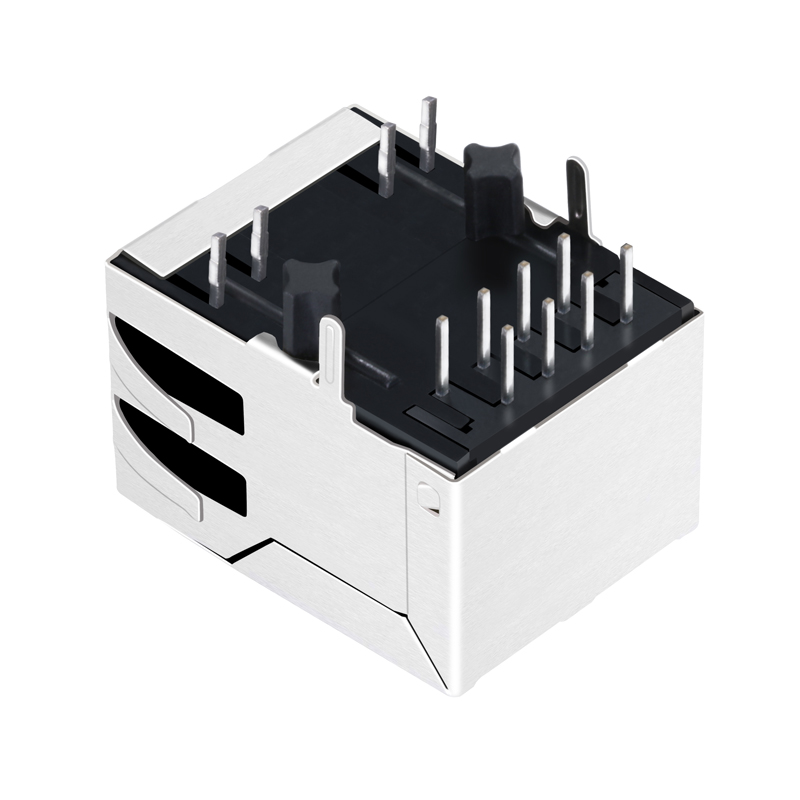

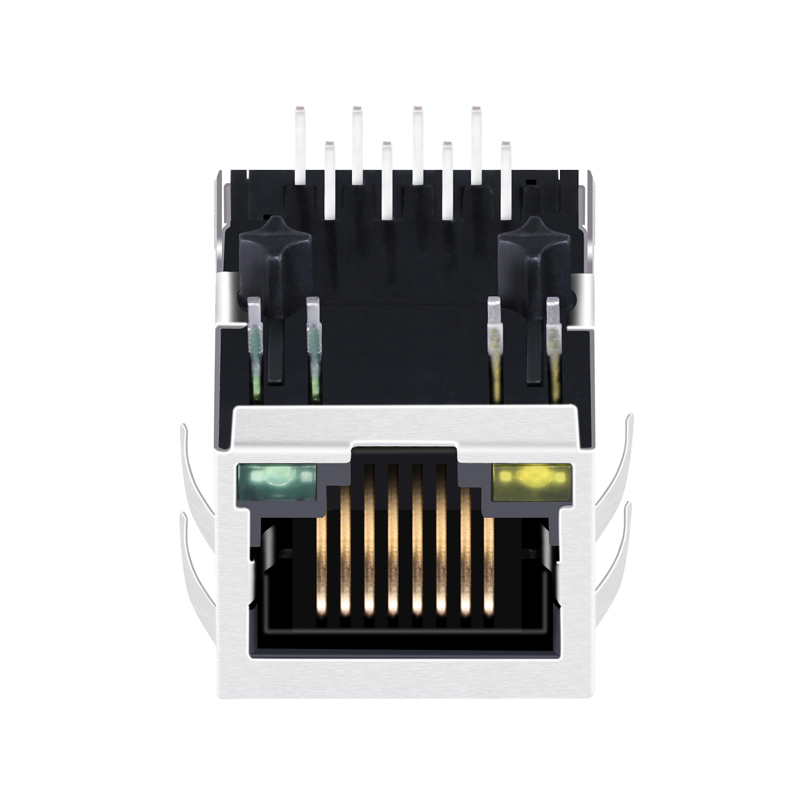

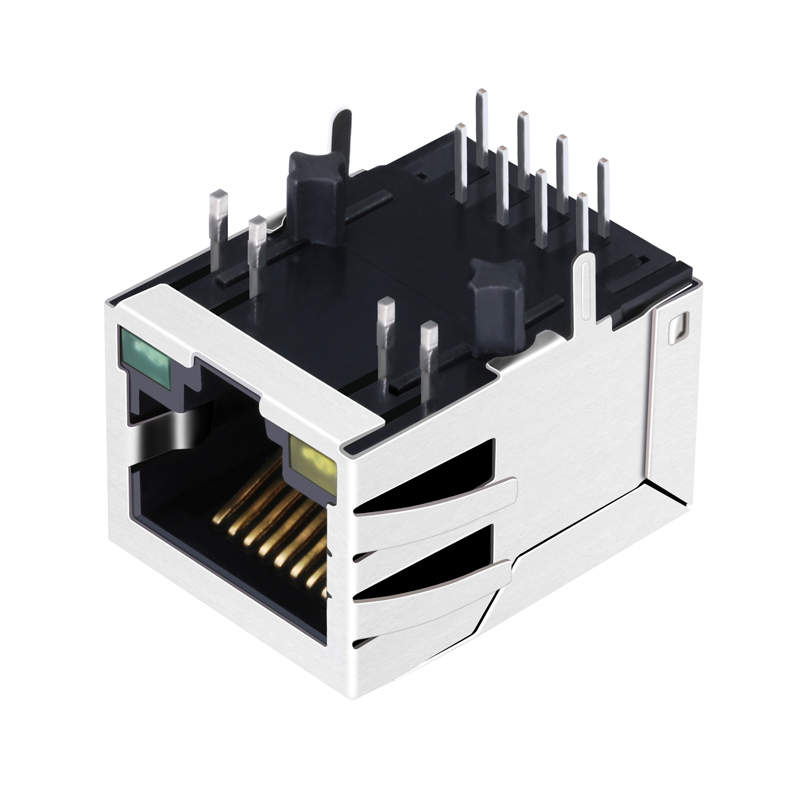

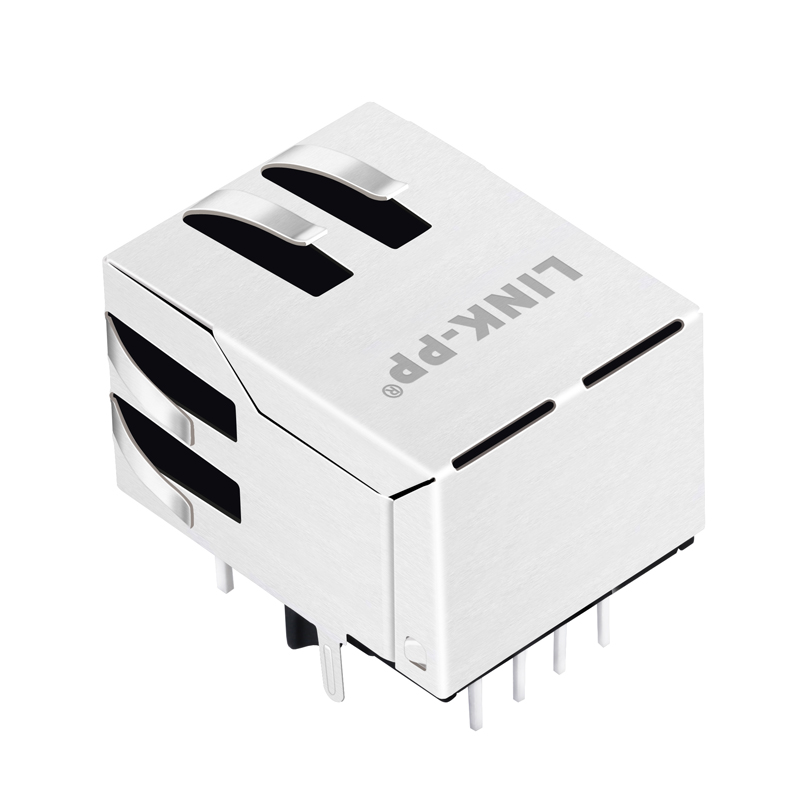

The TIC-L003-11 is designed for 10/100 BASE-T internet and network applications, serving as a reliable modular plug solution for devices requiring wired internet connectivity.
Yes, this part features AutoMDIX support, allowing for automated configuration of interface links without crossover cabling.
The TIC-L003-11 supports multiple gold plating choices, including Gold 6u", 15u", or 30u", depending on your connection reliability requirements.
It supports standard temperature configurations operating from 0 to 70°C and extended industrial ranges from -40 to 85°C.
Yes, the TIC-L003-11 is RoHS-5 compliant with lead-in-solder exemption policies.
