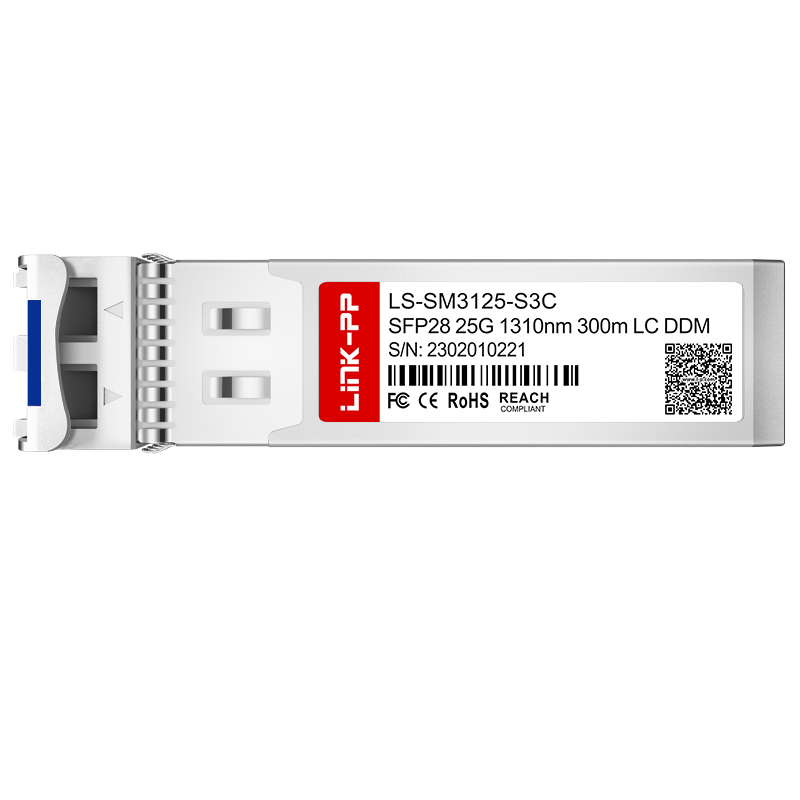

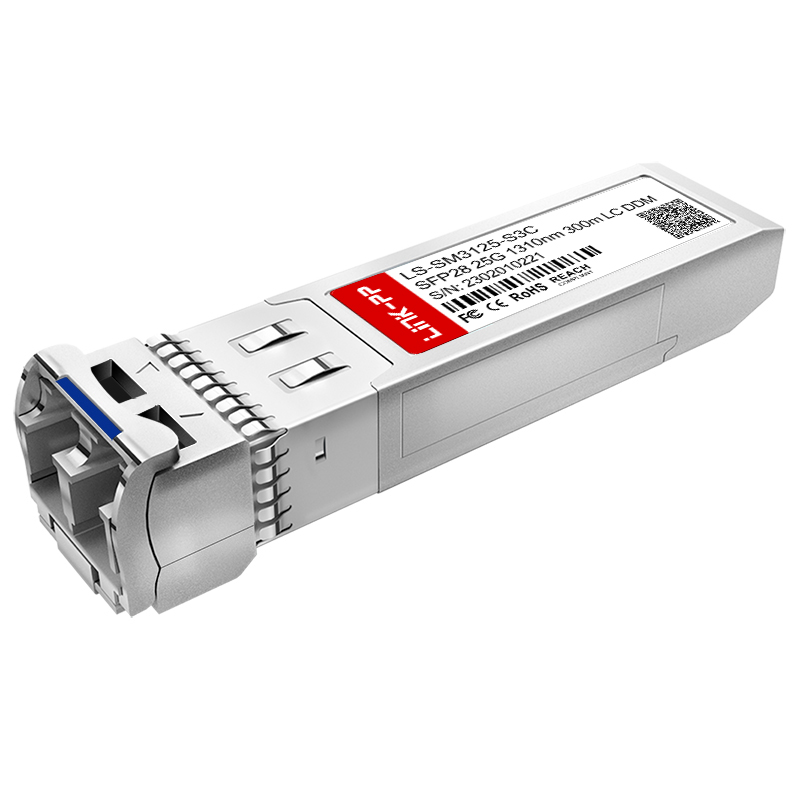

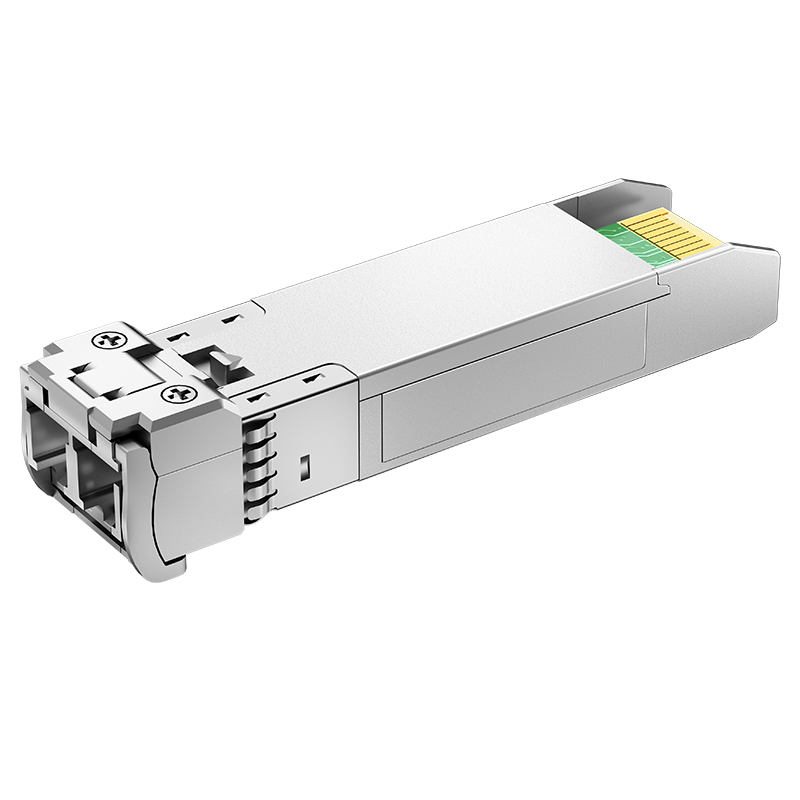

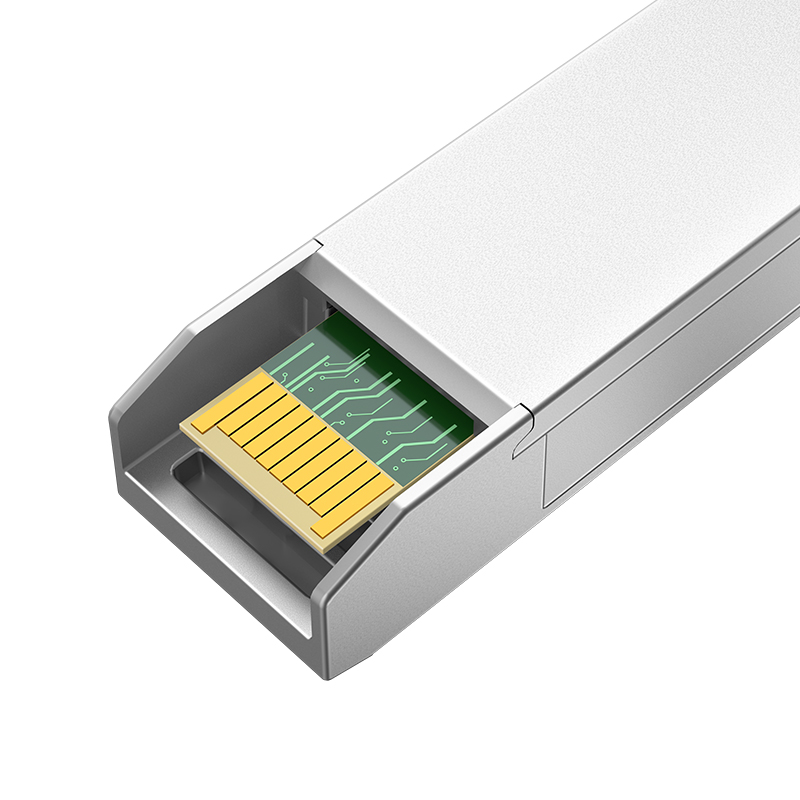

| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-S3C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 300m |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -5~2dBm |
| Receiver Sensitivity | <-8.5dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | 1W |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3 by, IEEE 802.3cc |
| Warranty | 5 Years |
| Sample | Available |
