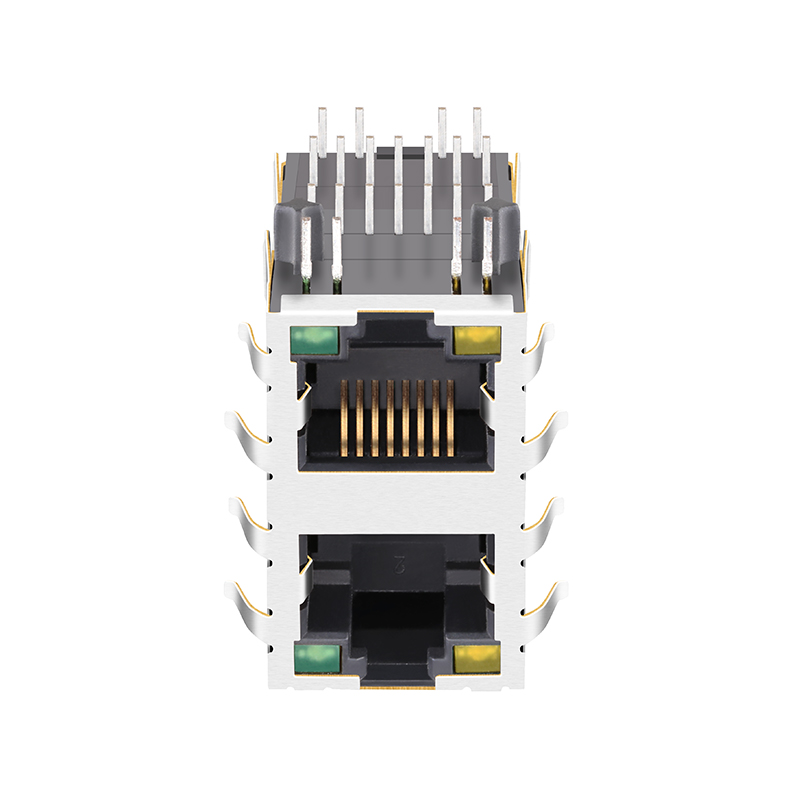

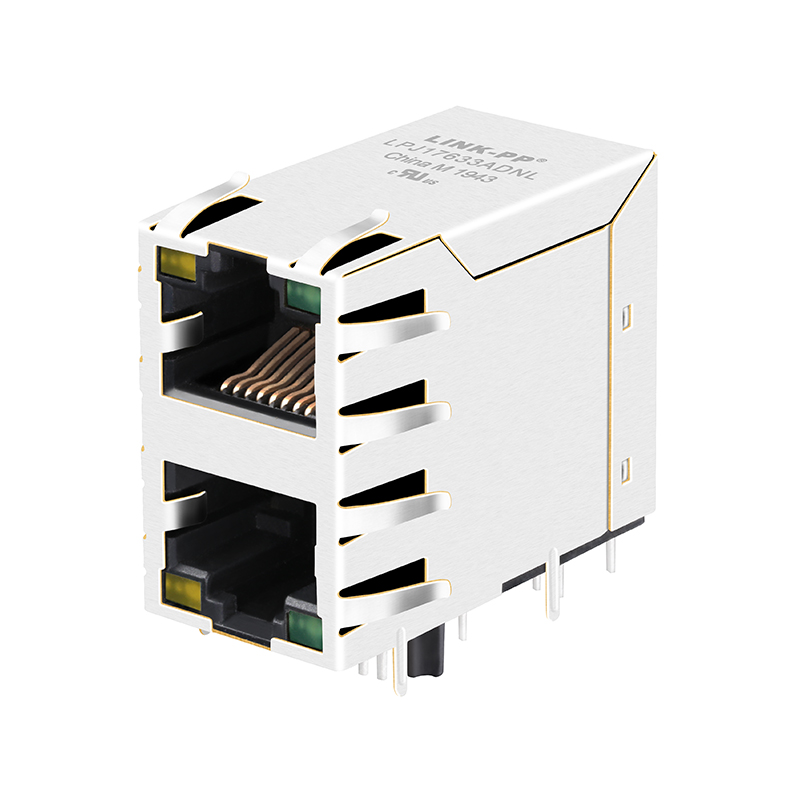

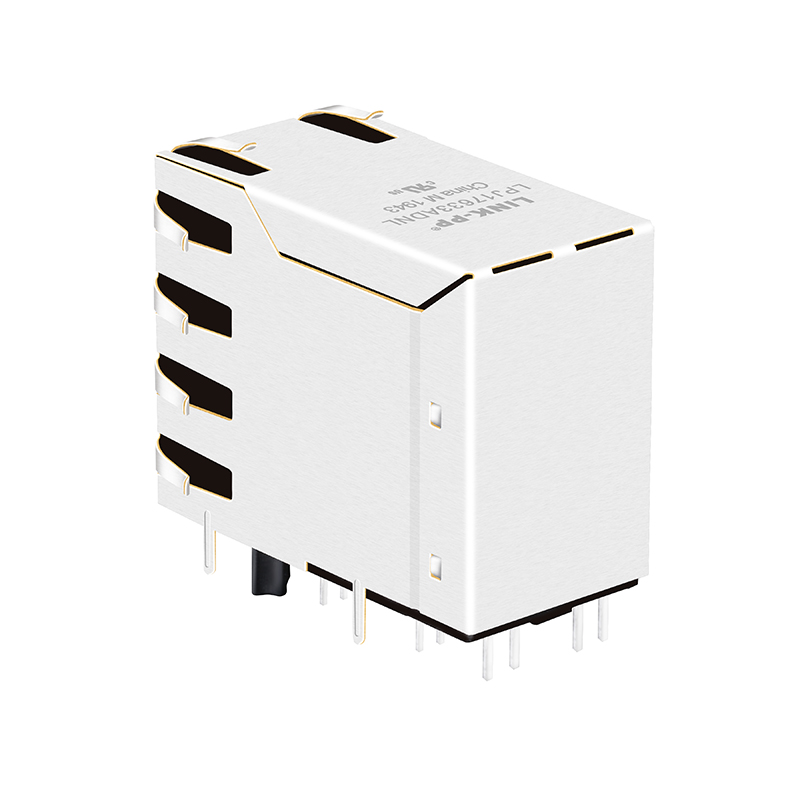

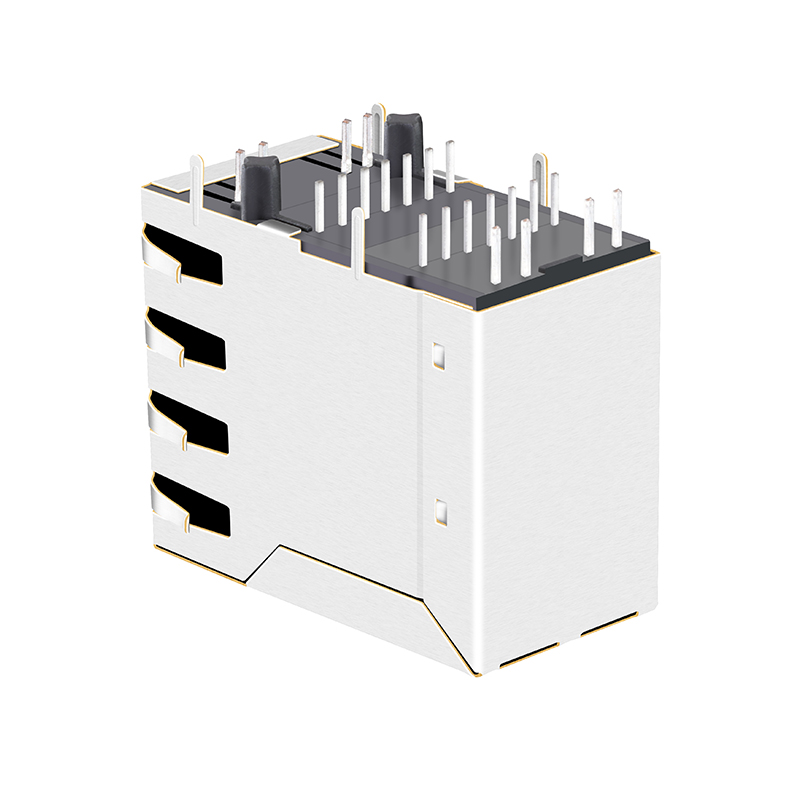

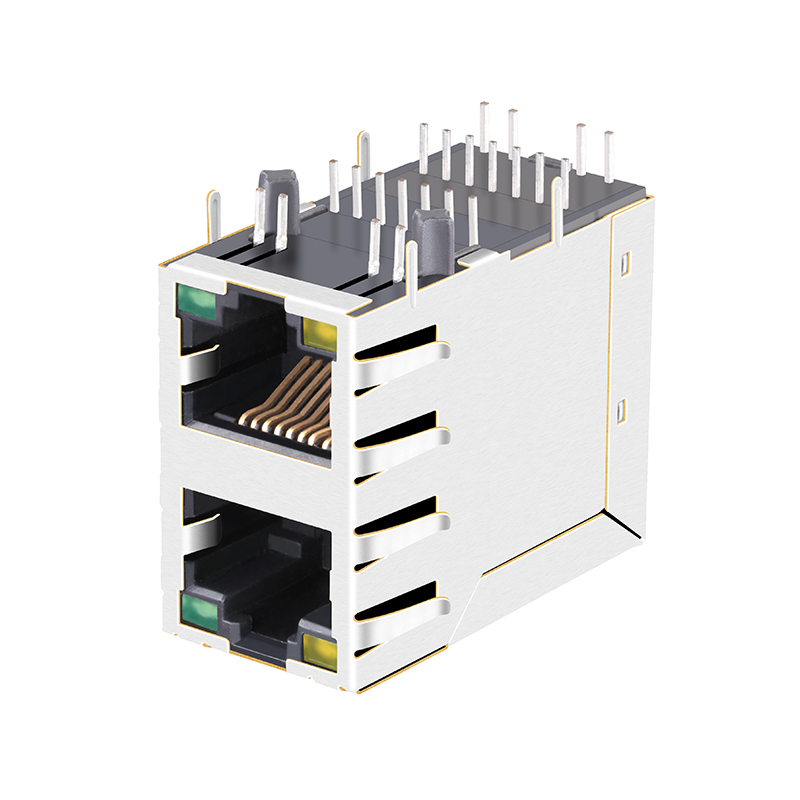

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
| Part Number |
0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN |
ETHERNET(NON PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
Yellow/Green LEDS |
| Latch |
UP/Down |
| Number of Ports |
2x1 Port |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With |
| Speed |
10/100 Base-T Magnetics |
| Temperature |
-40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
- ISO 9001:2008 Certified Quality Systems
- Full UL Certification Standards
- Reach Compliant Materials
- RoHS Compliance Guarantee
- Active and Responsible Environmental Policy
- Manufactured Under Strict, Standardized Controls
- 100% Comprehensive Testing (Not Just Batch Tested)
- Trusted OEM Supplier of TE (Tyco) for over 9 Years
- Preferred Provider for Global Leaders (TI, Samsung, Cisco, Siemens, Intel)
- 6-Year Product Quality Guarantee
- More Competitive Pricing than Pulse, Tyco, Halo, Wurth, and Amphenol
- Fast Turnaround: Delivery Time 2-3 Weeks from Order
- Free Evaluation Samples Available Upon Request
- Customized Designs and Tailored Engineering Support
- Up to 90% Off Shipping Costs via DHL, UPS, FedEx, or TNT
Technical & Design Diagrams
Preferred Component Supplier for Industry Leaders Including TI, Samsung, Cisco, Siemens, and Intel. Trusted Reliability Integrated Directly on Premium Development Boards.
Frequently Asked Questions
What are the primary applications for this RJ45 Modular Jack?
This connector is specifically engineered for ETHERNET (NON PoE) applications, ideal for standard network switches, routers, interface cards, and industrial network devices requiring 10/100 Base-T speed.
Does this model support Power over Ethernet (PoE)?
No, this specific part number configuration (0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020) is rated for ETHERNET (NON PoE) operations.
What is the operating temperature range?
Depending on your specific application environment, these parts support temperature ranges from -40 to 85°C for industrial needs or 0 to 70°C for commercial applications.
What compliance and environmental standard certifications does it hold?
The product is fully certified under ISO 9001:2008, carries UL certification, is Reach certified, and holds RoHS compliance (RoHS-5 with lead-in-solder exemption).
Can I obtain samples before placing a commercial order?
Yes, free evaluation samples are available to help verify the compatibility and performance requirements of your PCB design layouts.
What is the estimated delivery lead time?
The typical shipping lead time is 2-3 weeks after order confirmation, with fast delivery options supported by DHL, UPS, FedEx, or TNT.
