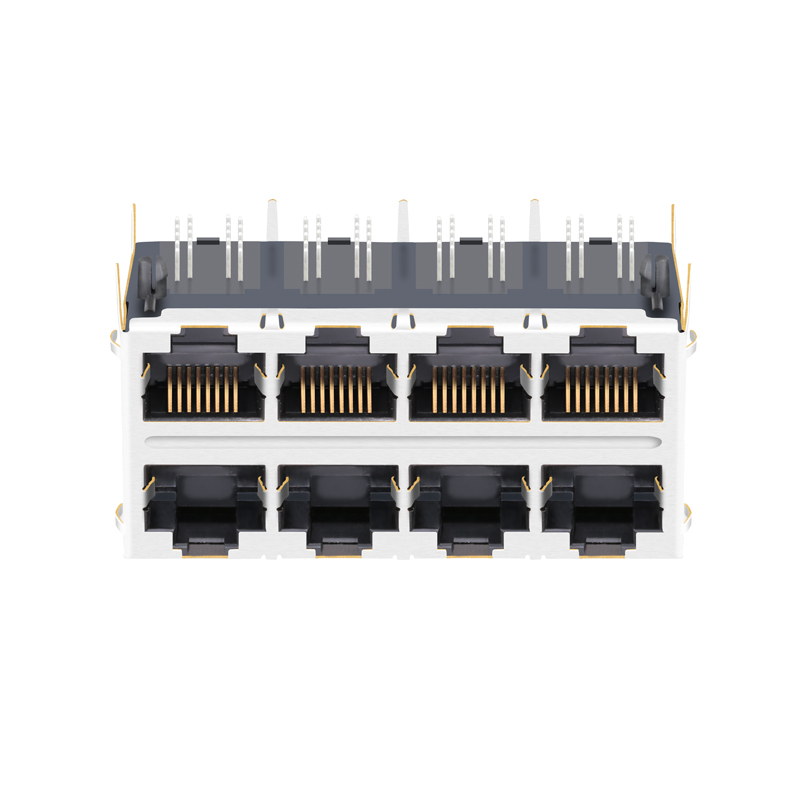

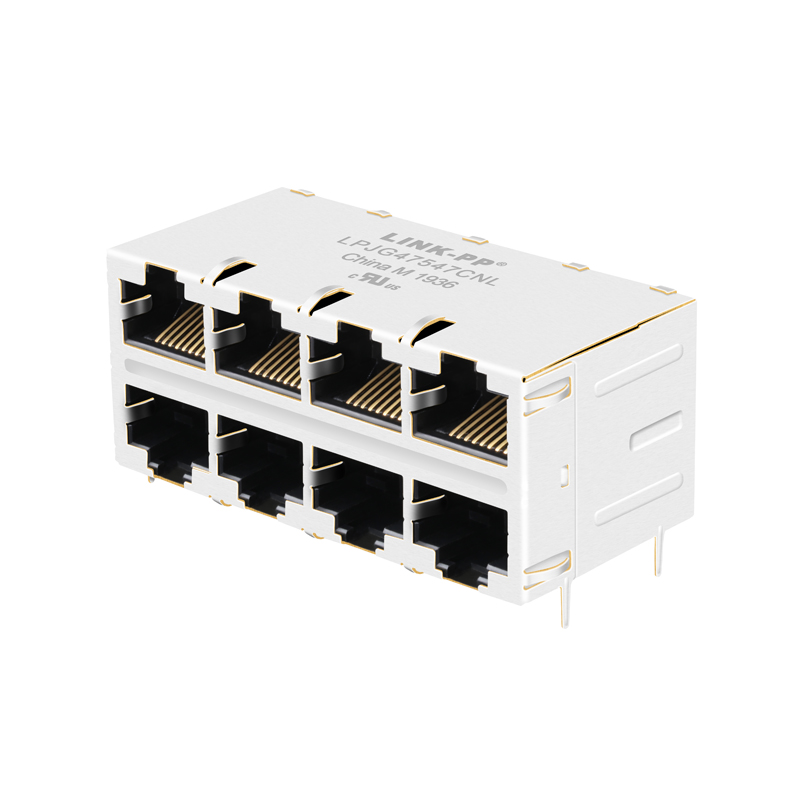

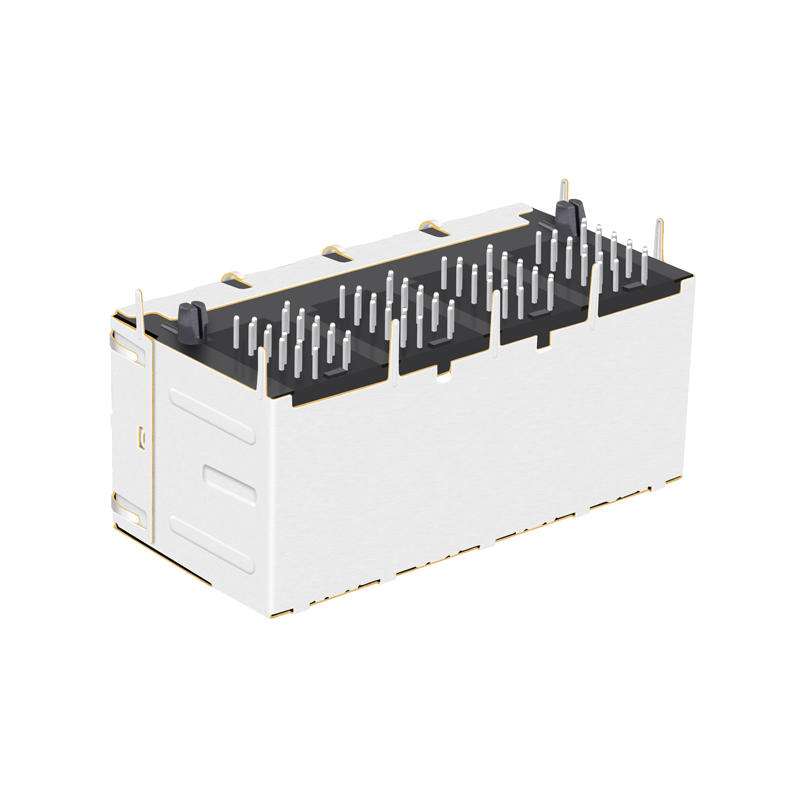

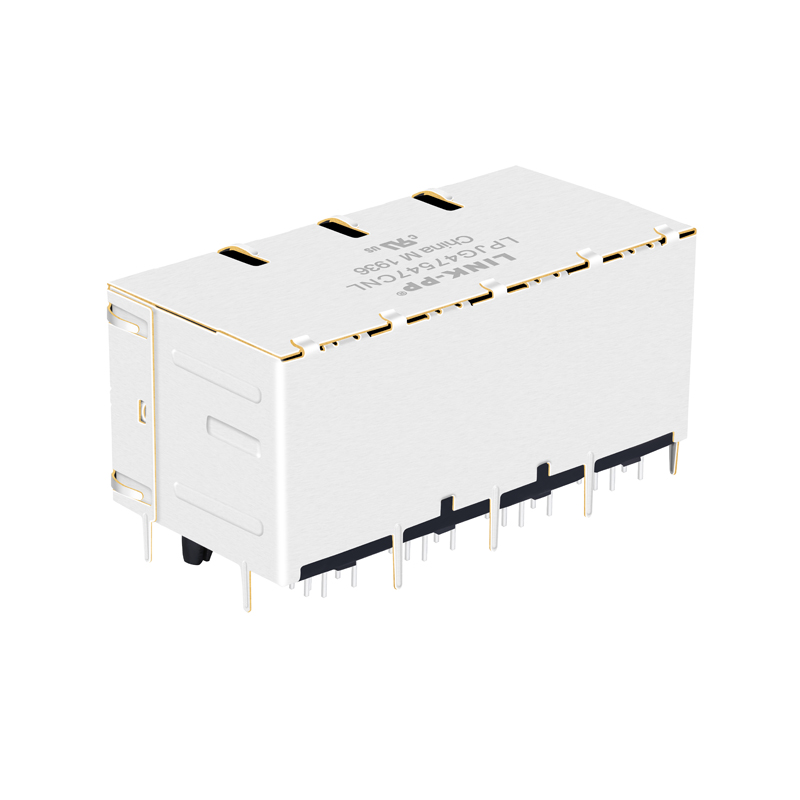

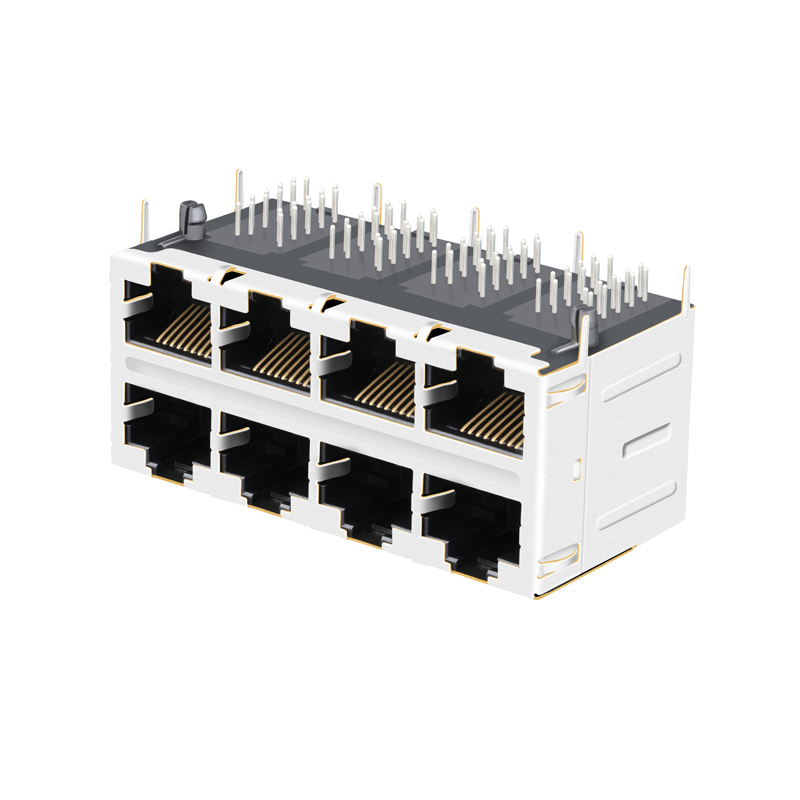

10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1

Product Description

RJ45 Ethernet Connector Series
10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1
Products Description
Item RJ45 Female Connector
Part Number LPJG47547CNL
Compatible With JC0-0131 DA6T00101 DA6T10303 DU1T202A1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x4 Port
Speed 1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Technical Drawing Dimensions
RJ45 Connector Types Overview
Connector Specifications Details 1
Connector Specifications Details 2
Connector Specifications Details 3
Quality Standard Verification 1
Quality Standard Verification 2
Quality Standard Verification 3
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to providing top-quality Ethernet RJ45 connectors and LAN transformers worldwide.
Manufacturing Plant Overview
Production Line Operations
Testing and Quality Control
Factory Certificate Standard
Customer Service Commitment
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can have a detailed discussion on your custom requirements.
What is your advantage?
We possess over 19 years of production experience and have been a trusted partner for global industry leaders for many years.
