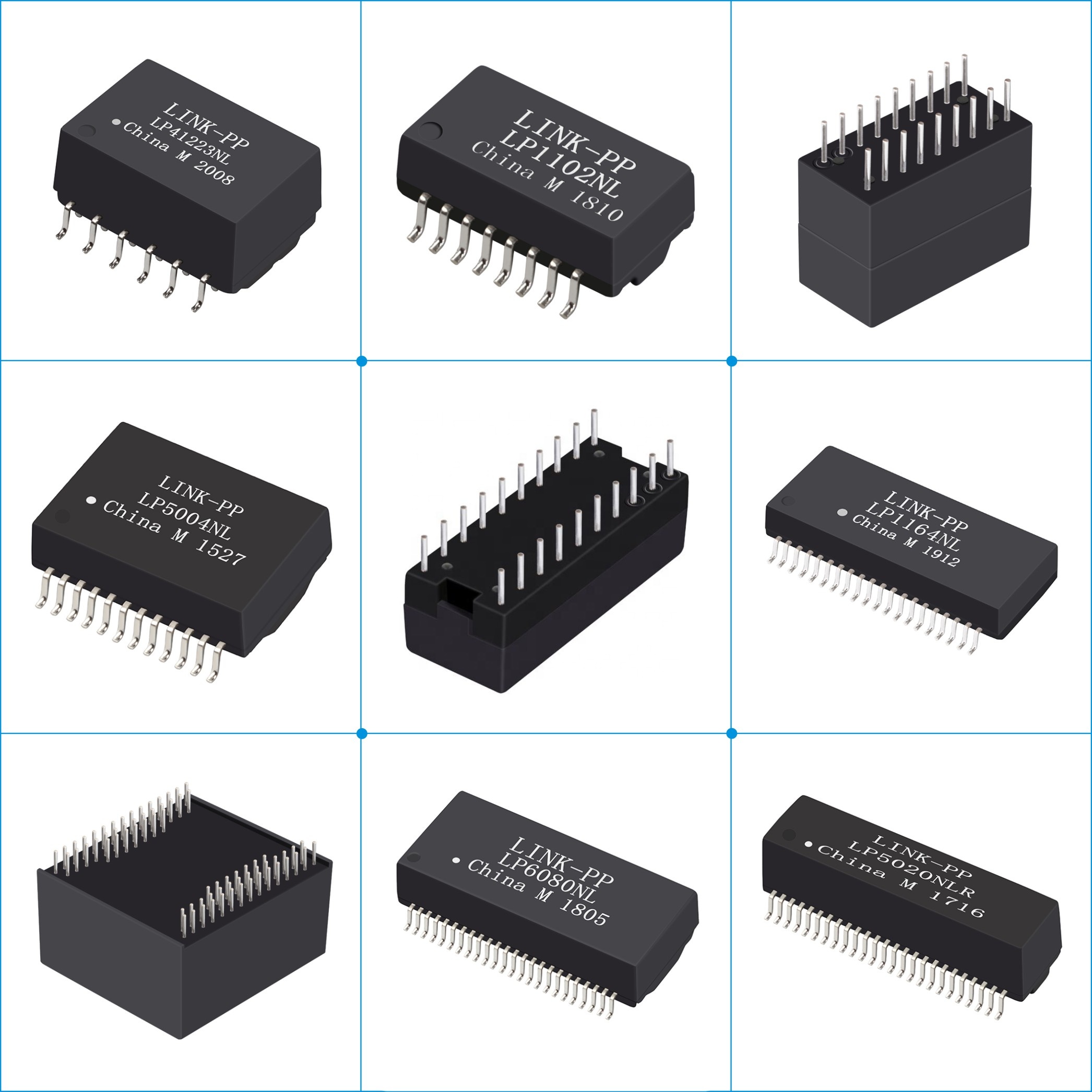

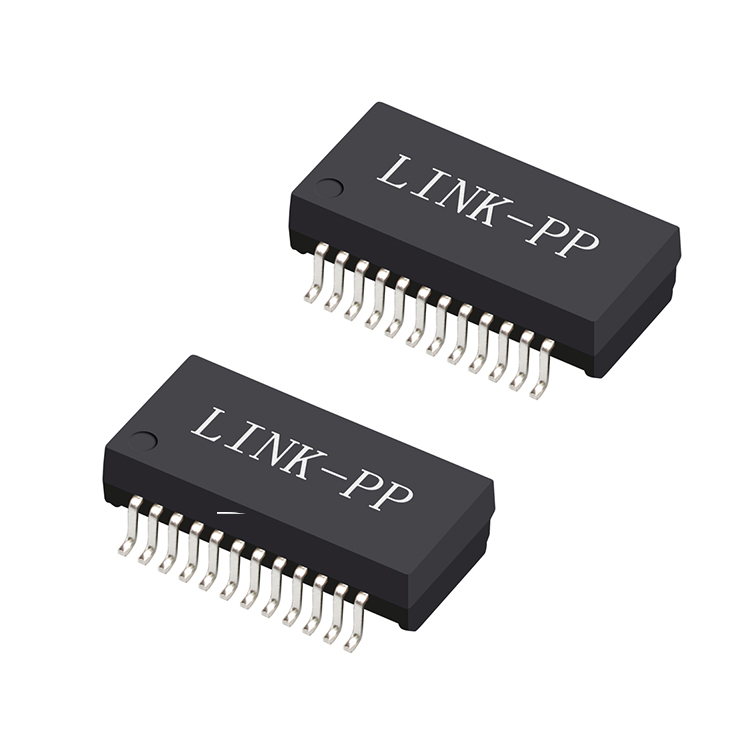

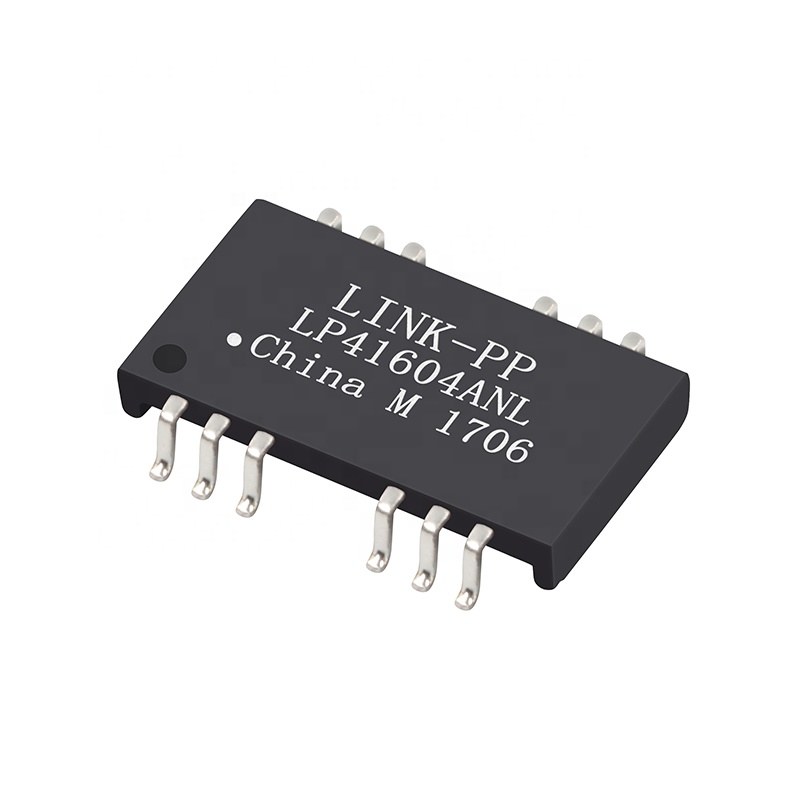

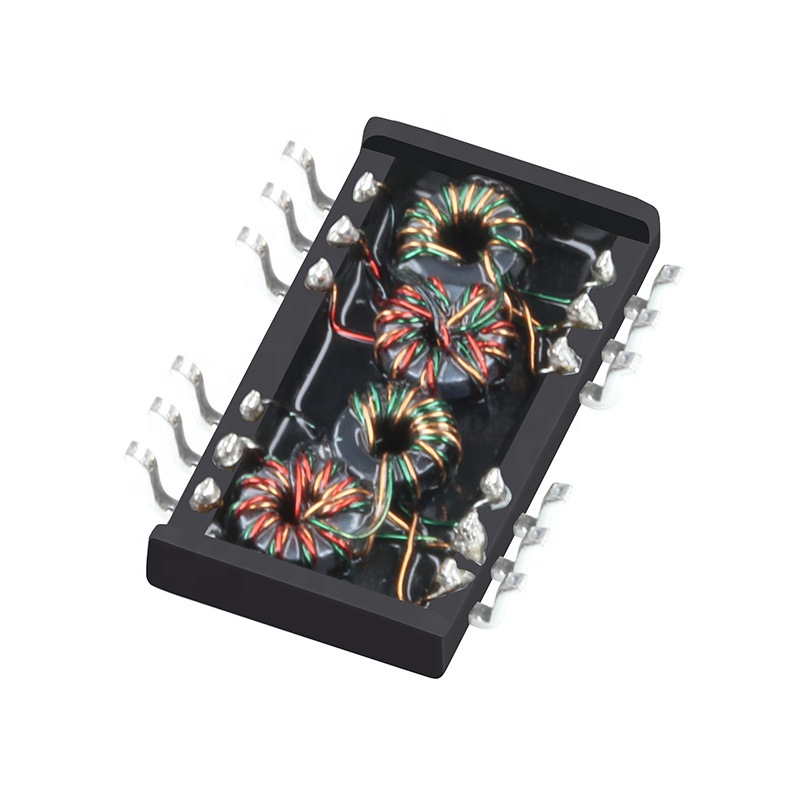

NS0013BLF 10/100 Base-T SMD Lan Filter Module Magnetic Transformer
Products Description
Item
Lan Transformer
Replaceable Brand Model
NS0013BLF
Part Status
Active
Construction
Open frame
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet (Non-PoE)
Number of Ports
Single / Dual / Quad
Speed
10 / 100 / 1000 Base-T
Cores per Port
4 / 8 / 12
Pin Number
10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type
DIP / SMT
Temperature
0°C To 70°C / -40°C To 85°C
AutoMDIX
YES
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T, C, S
Package
Tape & Reel
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, and equipped with advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver the goods within a short time frame. Moreover, we provide professional complete solutions for magnetic components alongside strong technical support.
Main Products:
10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Key Partners & Customers:
ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will build long-term partnerships.
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees must be covered.
3. What is your delivery time?
Items are ready to ship immediately for in-stock options, and require 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can proceed with a detailed discussion.
6. What is your advantage?
We bring 19 years of professional production experience, serving as a trusted industry partner for many years.
