Xelivor
Xelivor

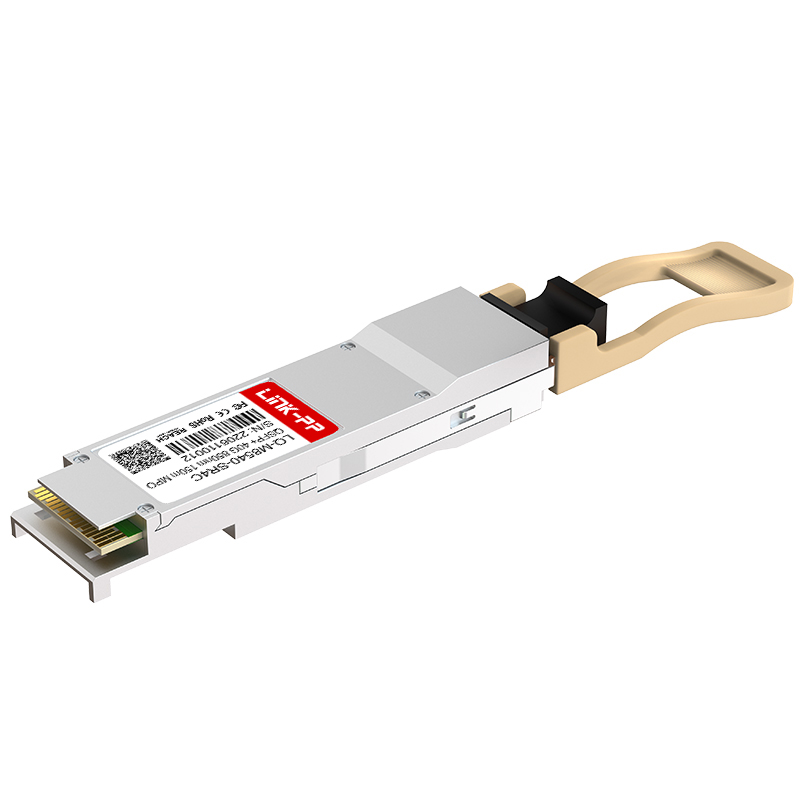

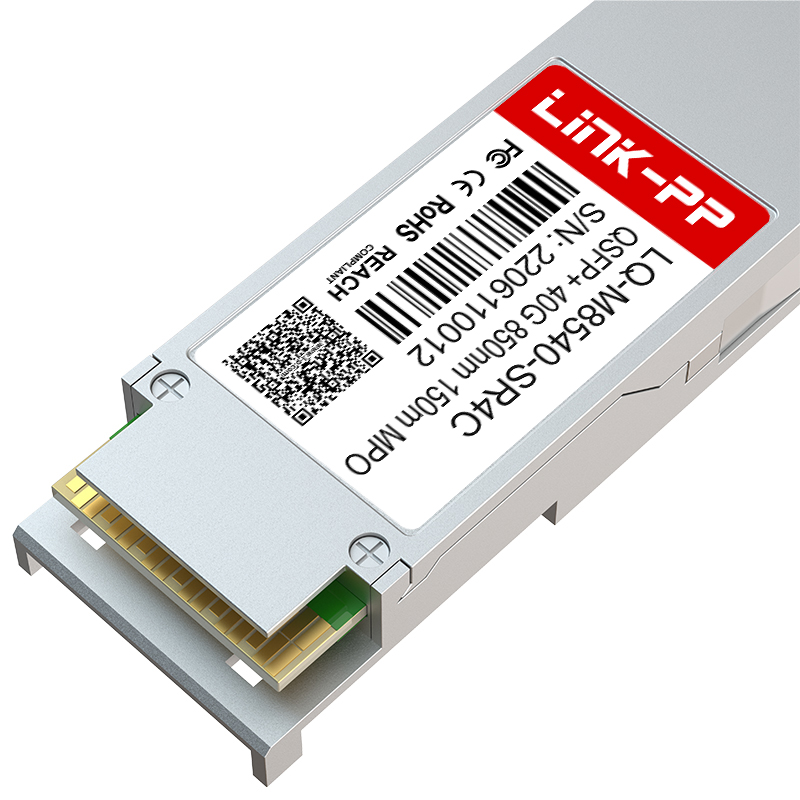

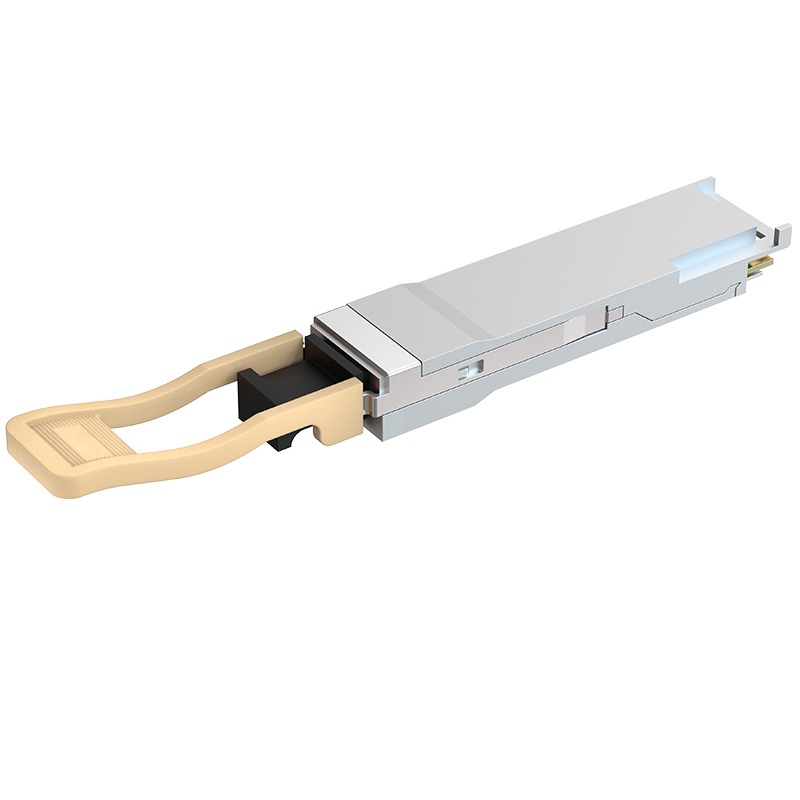

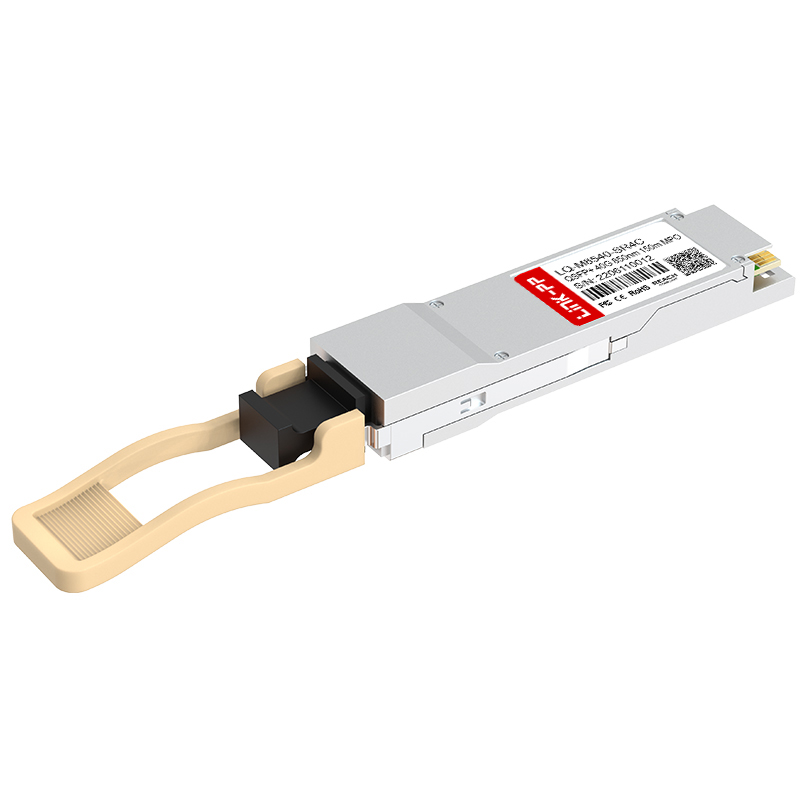

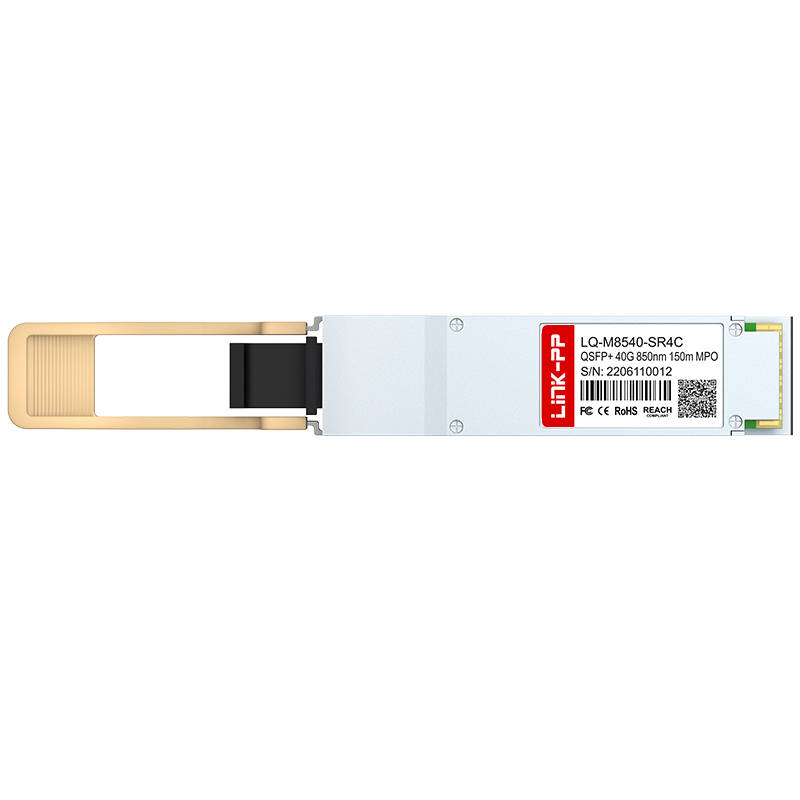

| Item | 40G Optical Modules |
| Replaceable Part | Cisco, HW, Arista, Juniper, Brocade, Intel, etc |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps (4x 10.3125Gbps) |
| Wavelength | 850nm |
| Max Cable Distance | 150m@OM4/100m@OM3 |
| Media | MMF |
| Connector | MTP/MPO-12 Male |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1~1.9dBm |
| Receiver Sensitivity | < -10.3dBm |
| Powerbudget | 3.5dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.5W |
| Extinction Ratio | >3dB |
| DDM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
| Sample | Available |
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
For products in stock, they are ready to ship. For mass production items, lead time ranges between 15-30 days.
We provide a one-year warranty period and offer 24-hour online technical support.
Yes, you are welcome to send us your inquiries so we can discuss requirements in detail.
We have 19 years of manufacturing experience and have partnered with major industry leaders globally for many years.
