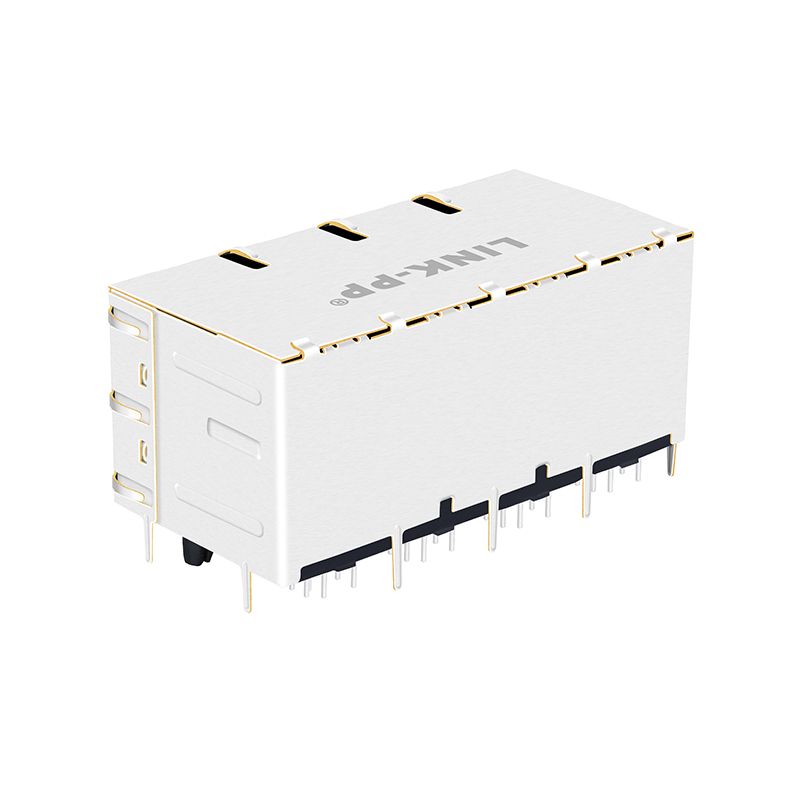

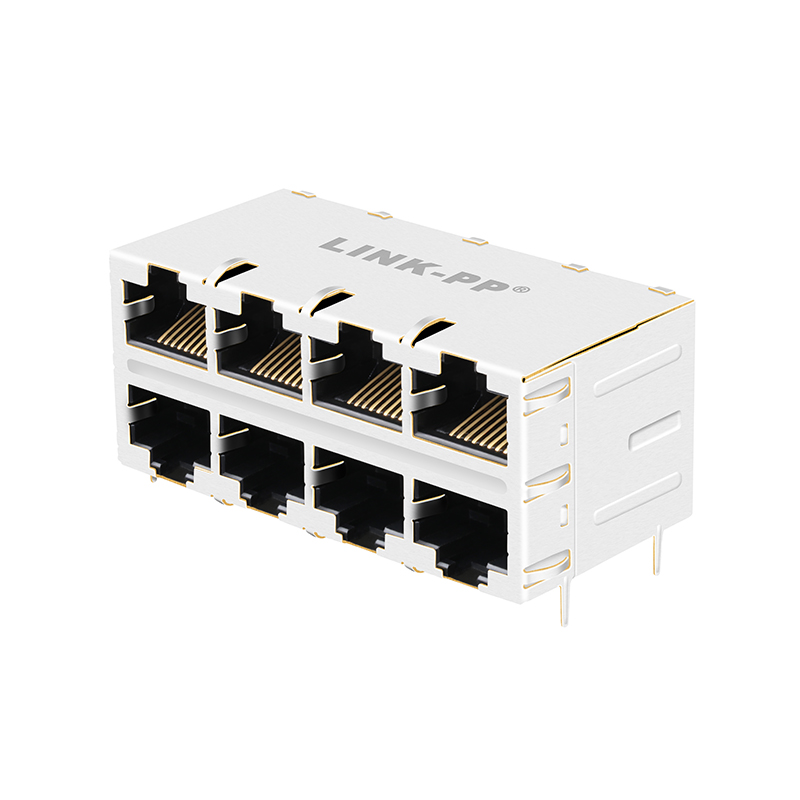

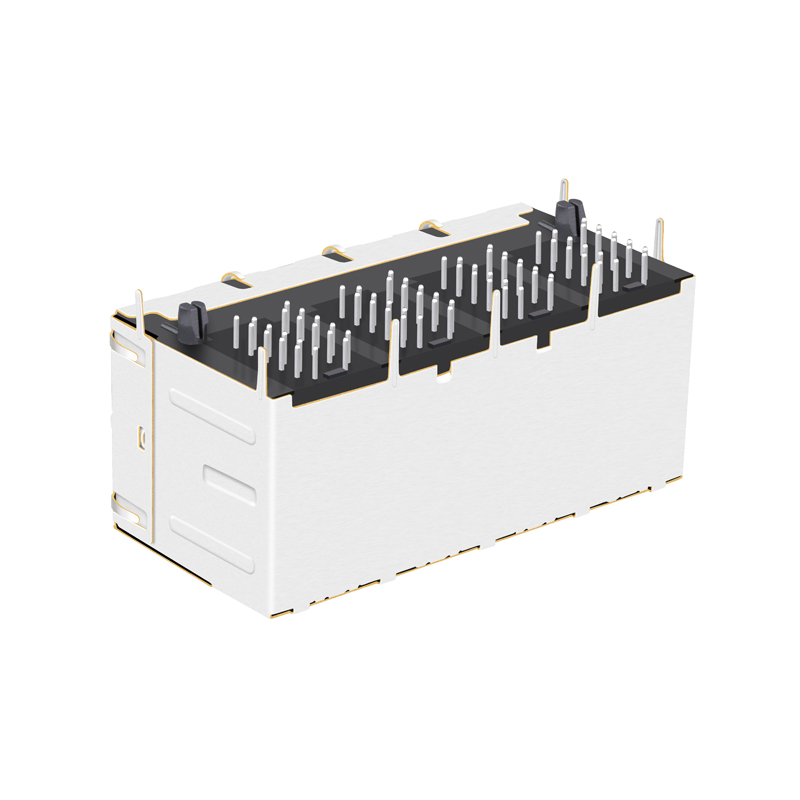

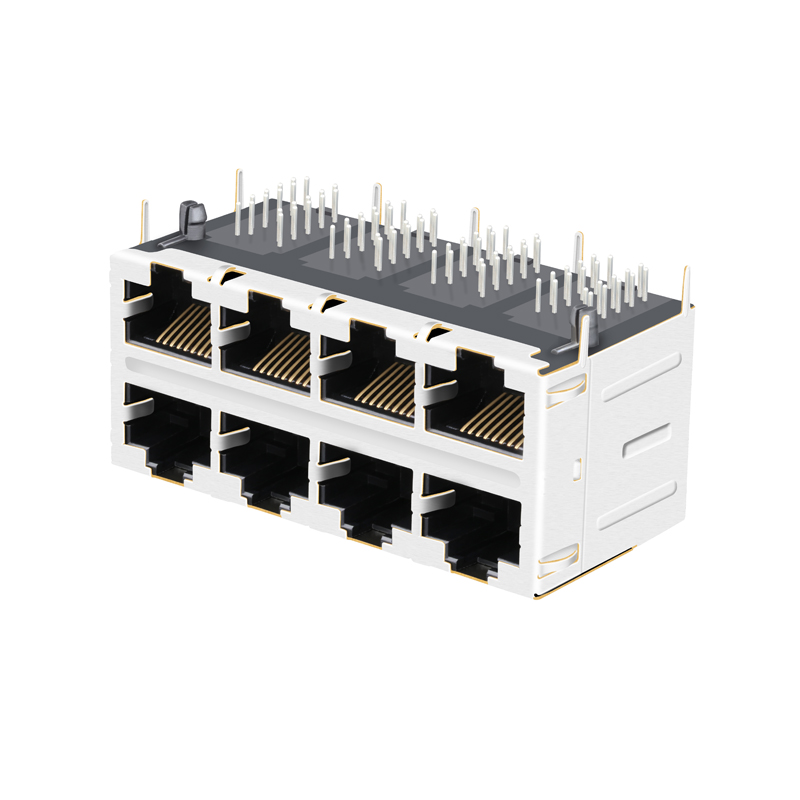

Variety of Colours Ethernet RJ45 Socket Connector HR902410A

Product Description

Specification

Item	Value
Model Number	China
Part Status	Active
Connector Type	RJ45
Applications	10/100 Base-T, AutoMDIX
Orientation	90° Angle (Right)
Gender	Female
Pins	8P
Number of Cores	Four Cores
LED Color	Without Leds
Application	PCB
Part Number	HR902410A
Number of Ports	2X4 Port
Termination Style	Through Hole
Shielding	Shielded
Contact Plating	Gold
Housing Material	Thermoplastic

Packing & Delivery

The Package: 12 pcs in 1 tray, 18 trays in 1 carton, which is 37*30*30 cm, 11KGS (216pcs) of each carton.

Manufacturing & Production

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. Our facility owns advanced manufacturing installations and testing equipment imported from abroad. Established in 1997, our production infrastructure utilizes around 2,000 skilled staff members. With an abundant monthly capacity of 3,000K units, we are equipped to handle high-volume demands with efficient turnaround times. We also provide complete, professional technical support and custom design solutions for magnetic components.

Our products are widely utilized in standard and high-performance communication systems, including Hubs, PC mainboards, switches, routers, SDH, PDH, IP Phones, and xDSL modems.

Main Product Categories:

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic components
T1/E1, T3/DS3/E3/STS-1 interface line transformers
ISDN, HDSL, ADSL and VDSL interface line transformers and splitters

Our engineering staff is dedicated to identifying, developing, and manufacturing optimal solutions customized for standard and highly specific requirements.

Frequently Asked Questions

Q1: What are the main applications of the HR902410A RJ45 connector?

A1: This connector is designed for 10/100 Base-T and AutoMDIX networking and telecommunication applications, making it ideal for integration into PCBs, switches, routers, and hubs.

Q2: What is the physical orientation and port configuration of this model?

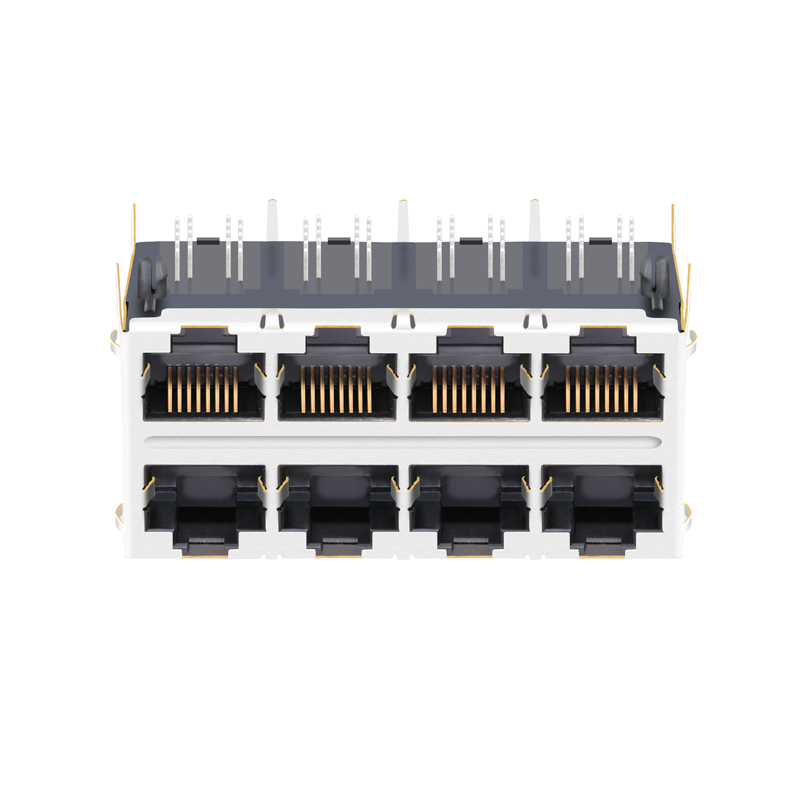

A2: The HR902410A features a 90° right-angle orientation, Female gender, with a 2X4 port multi-port configuration (8 ports total) containing 8 pins per port.

Q3: Does the HR902410A connector include integrated LED indicators?

A3: No, this specific model (HR902410A) is constructed without integrated LEDs.

Q4: What materials are used for the housing, plating, and shielding?

A4: The connector utilizes a high-quality thermoplastic housing, gold contact plating for enhanced electrical conductivity, and is fully shielded to minimize electromagnetic interference.

Q5: What is the standard packaging and weight configuration for delivery?

A5: The product is packaged with 12 pieces per tray and 18 trays in one carton, yielding 216 pieces total per carton. The package dimensions are 37*30*30 cm, with a total weight of 11 KGS.

Q6: What certifications comply with your manufacturing processes?

A6: Our design and manufacturing processes are strictly certified under ISO9001:2000, RoHS, REACH, CE, and UL compliance guidelines to ensure international quality and environmental safety.
