| Part Number | 0855135109 |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH LEDS/WITHOUT LEDS |
| Latch | UP/DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
This connector is specifically designed for Ethernet (Non-PoE) LAN applications, supporting network speeds of 10/100/1000 Base-T.

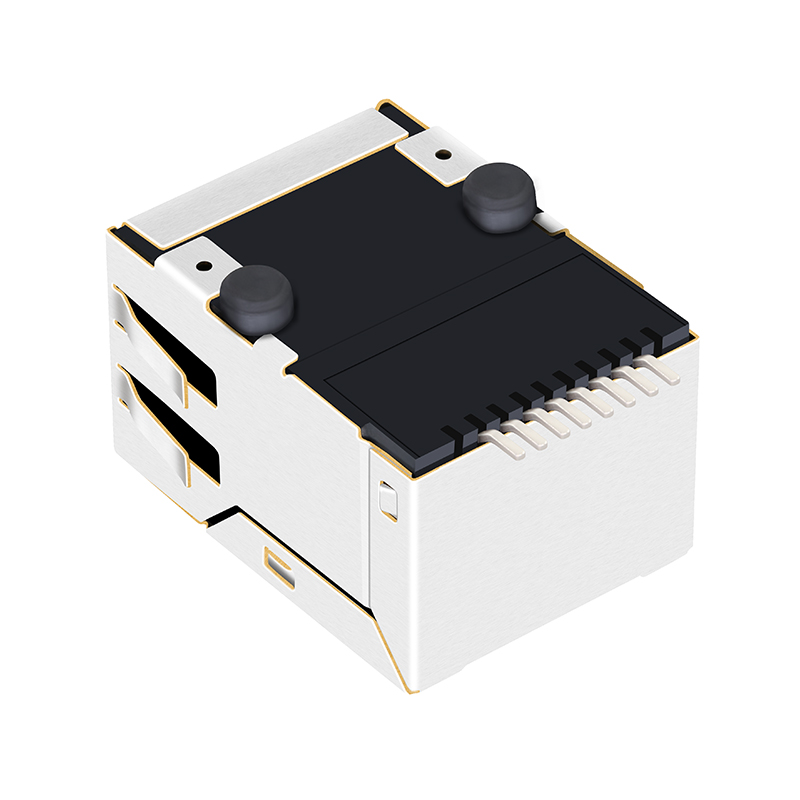

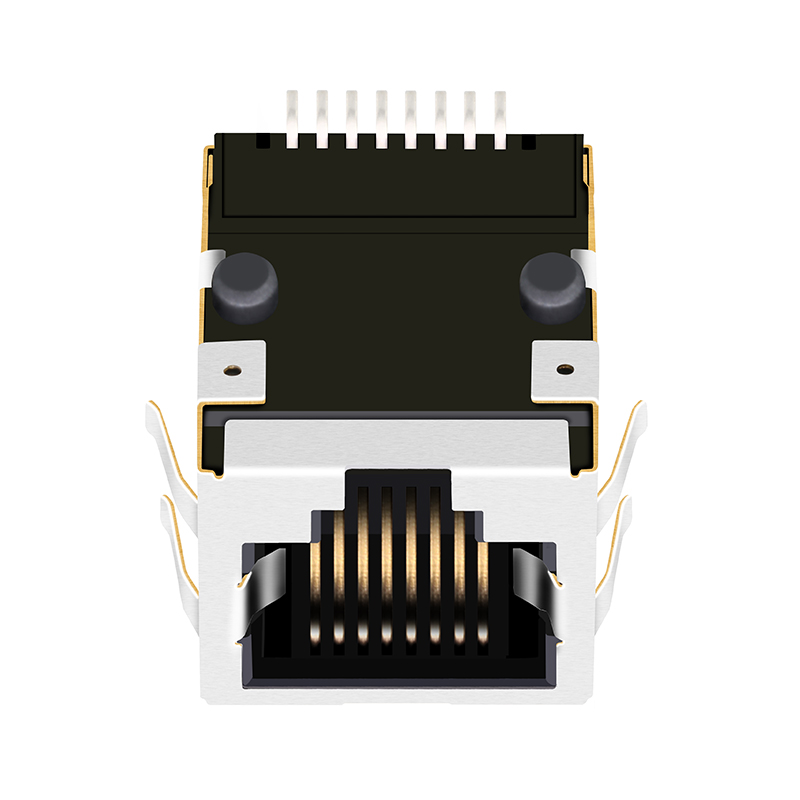

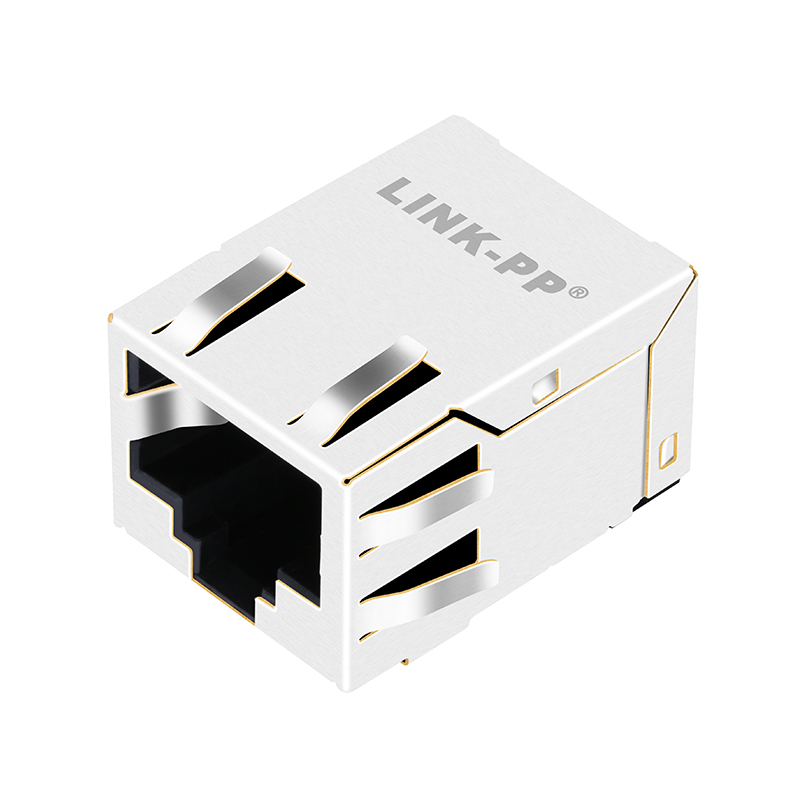

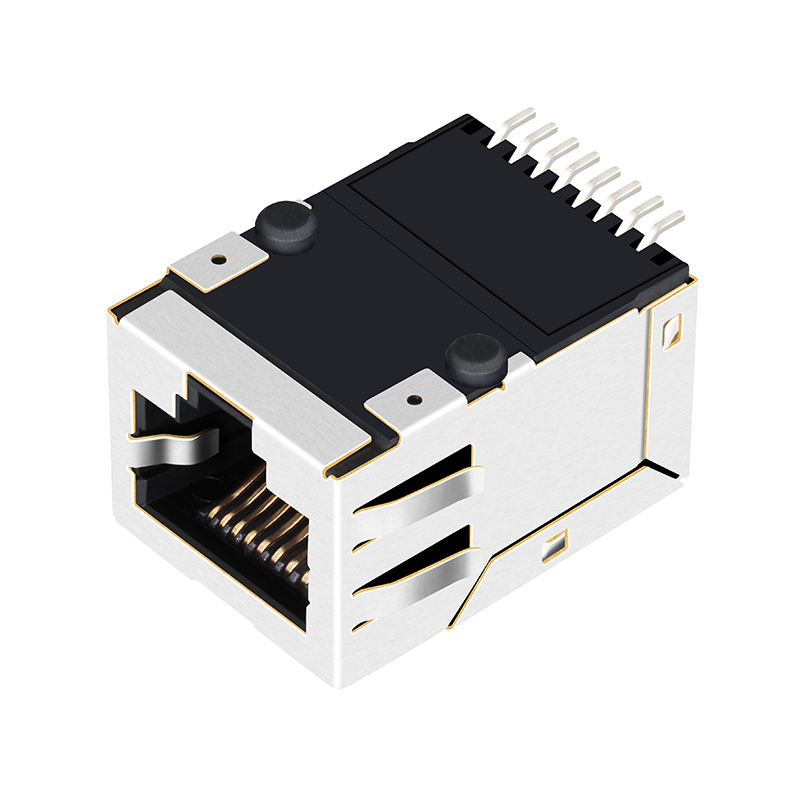

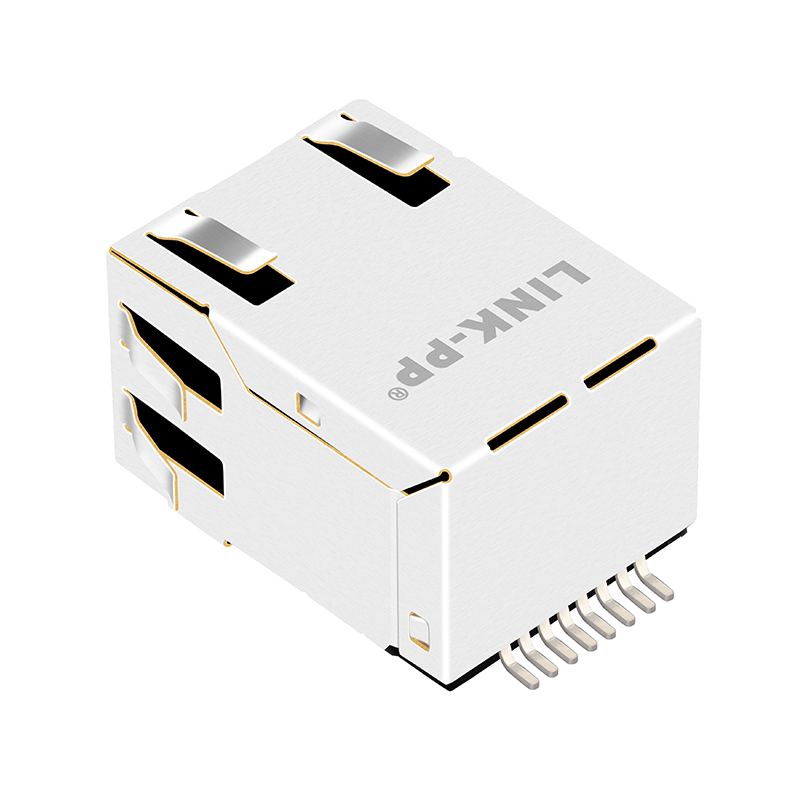

The 0855135109 is a low profile, 8P8C SMT (Surface Mount Technology) Top Entry Modular Jack featuring a side entry PCB mount angle with a T post retaining post configuration.
It is designed to perform reliably across standard temperature ranges, specifically from 0 to 70°C, and industrial temperature ranges from -40 to 85°C.
No, this connector is designed for Non-PoE Ethernet applications.
This product is manufactured under strict quality standards and complies with RoHS standards (RoHS-5 with lead in solder exemption), ISO 9001:2008, REACH, and UL certifications.
The contacts feature high-performance gold plating, available in thicknesses of 6u", 15u", or 30u" to ensure robust connectivity and longevity.
