100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Product Description

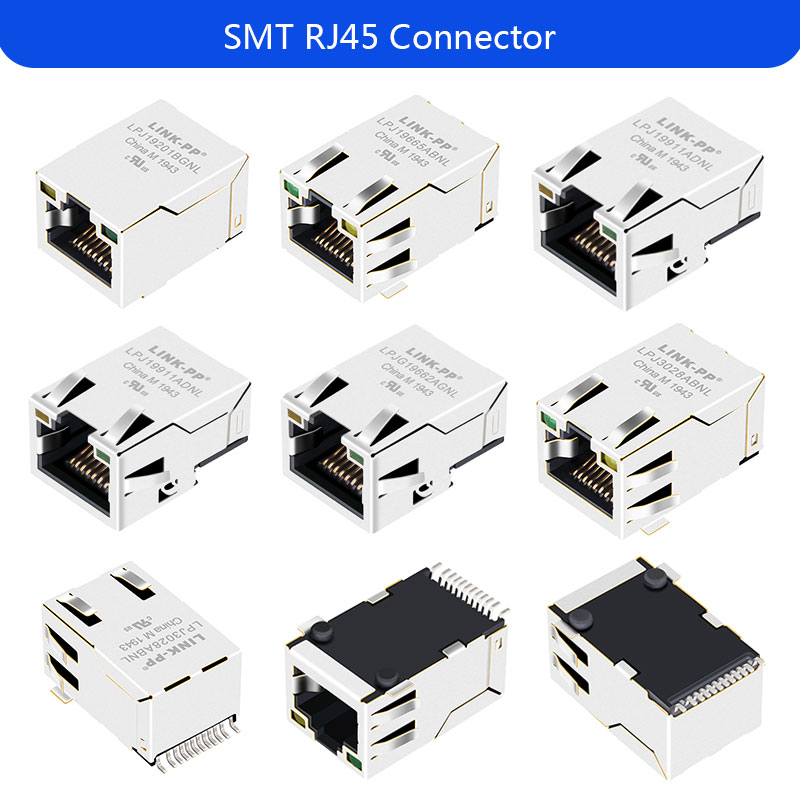

RJ45 Connector with Integrated Transformer

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification

Item	Value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T, C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

Package Style

Tray

Carton Size

34.5*34.5*27 cm

G.W. / Carton

6.9 kg

Qty / Carton

550 pcs

SPQ

110 pcs

N.W. / Pcs

0.013 kg

Manufacturing Facility

Frequently Asked Questions

What components and products can I purchase from you?

We offer a comprehensive selection of network components, including RJ45 Magnetic modules, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

How is the product quality guaranteed during manufacturing?

Quality control is strictly enforced with a mandatory pre-production sample prepared before bulk manufacturing, followed by a thorough, 100% final inspection before shipment.

What certifications do your factory and components carry?

Our products and operations comply with global standards and are certified by SGS, ISO9001:2008, UL, REACH, and CE.

What payment terms and transaction currencies are accepted?

We accept multiple currencies including USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Acceptable payment methods include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.

What are the available delivery and shipping terms?

We support a wide array of delivery terms to suit your logistics needs, including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.

Does this RJ45 connector support Power over Ethernet (PoE) applications?

Yes, our connectors support Power over Ethernet (PoE) capabilities up to 50 Watts and are compatible with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3at standards.
