LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

Product Description

RJ45 Ethernet Connector Banner
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
Specification
Item RJ45 Connector
Model Number LPJK7001AGNL
Part Status Active
Connector Type Low Profile RJ45
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack 4
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Product Gallery

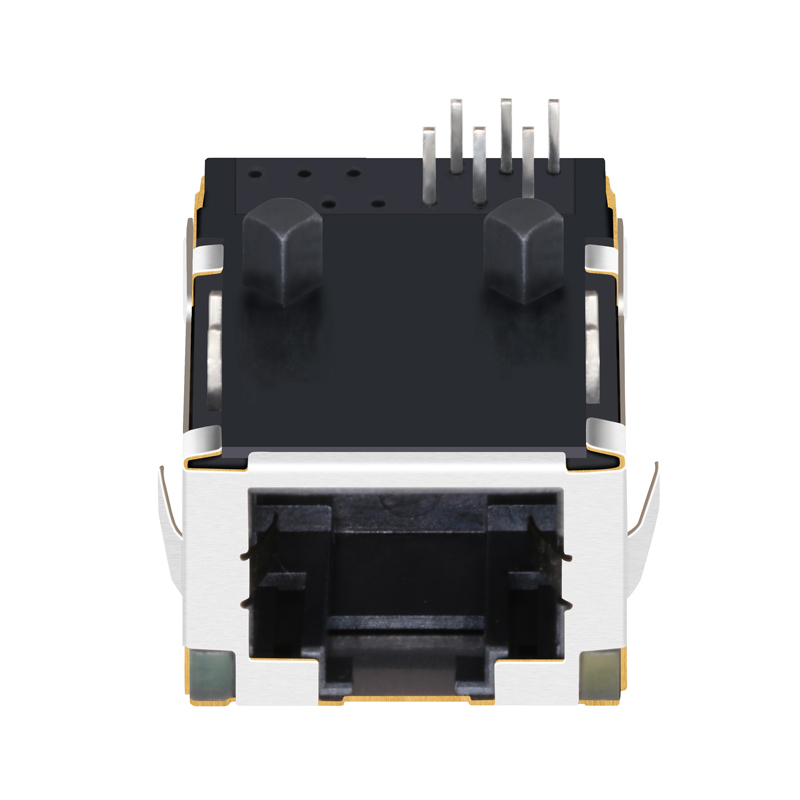

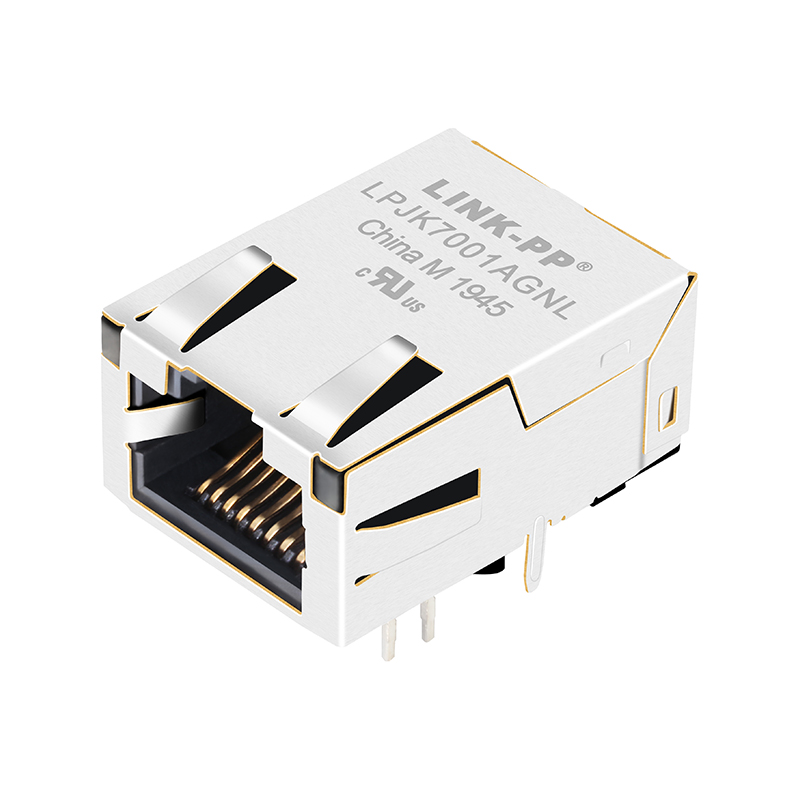

Product Angle View 1

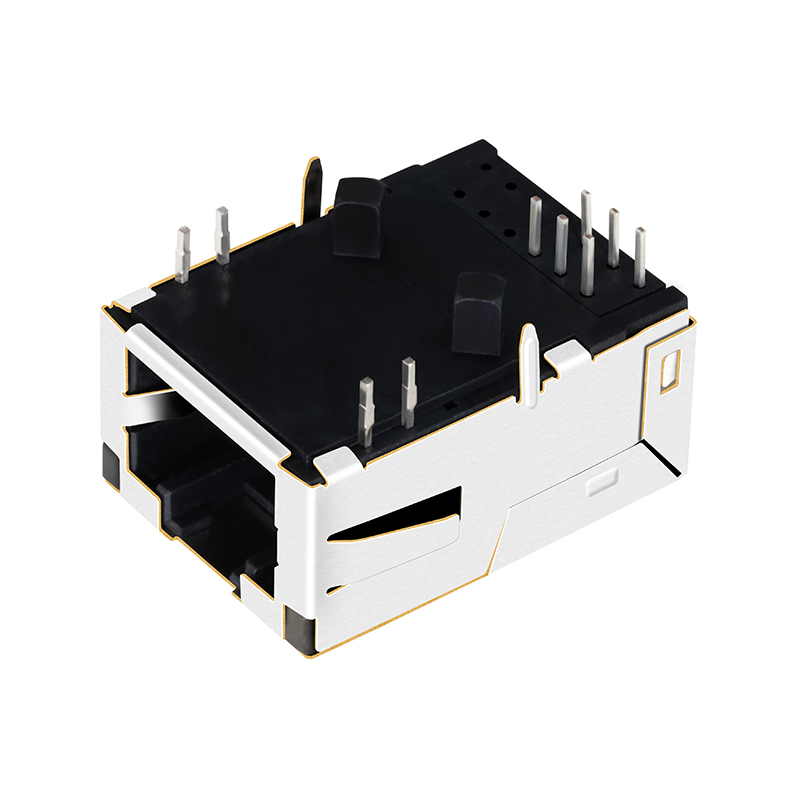

Product Angle View 2

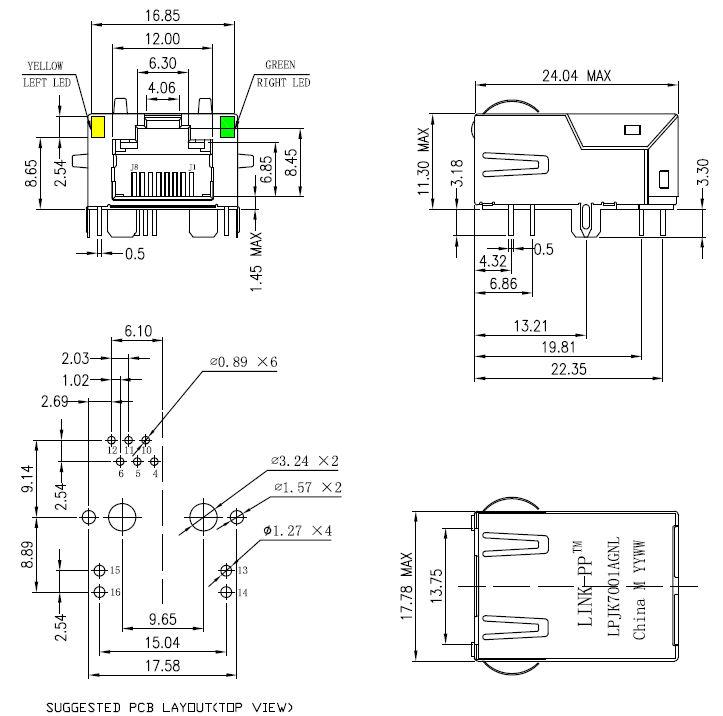

Product Schematic Diagram

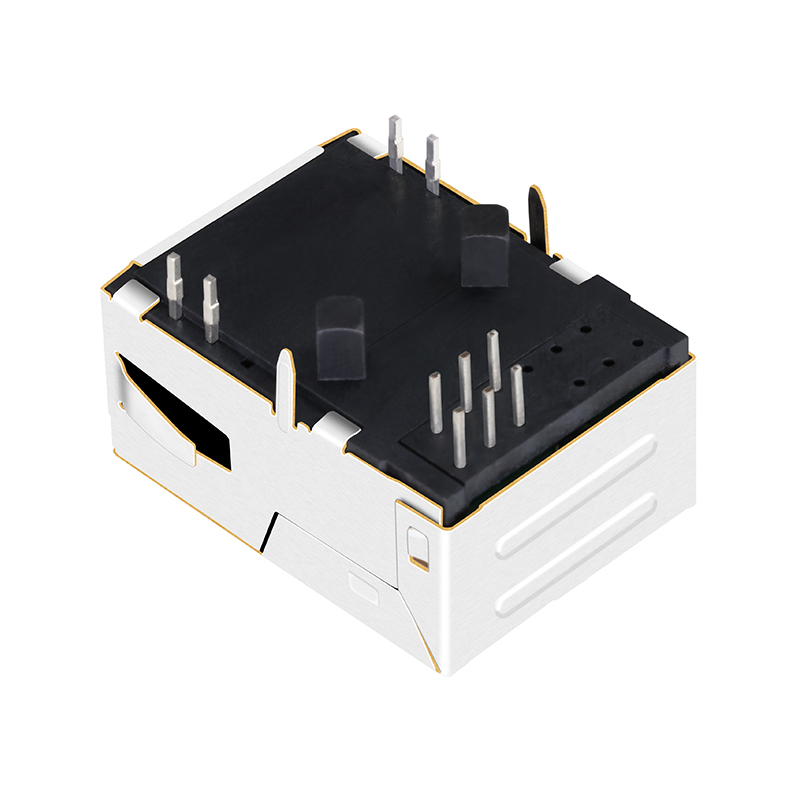

RJ45 Component Layout
