We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide highly reliable and high-performance products using mature, efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting the requirements of various 4G/5G system scenarios.
Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering all-optical or combined optical-copper access products.
To ensure the normal operation of communication lines, we provide an optical cable O&M solution integrating an optical line protection system (OLP) and an optical line monitoring system (OLM).

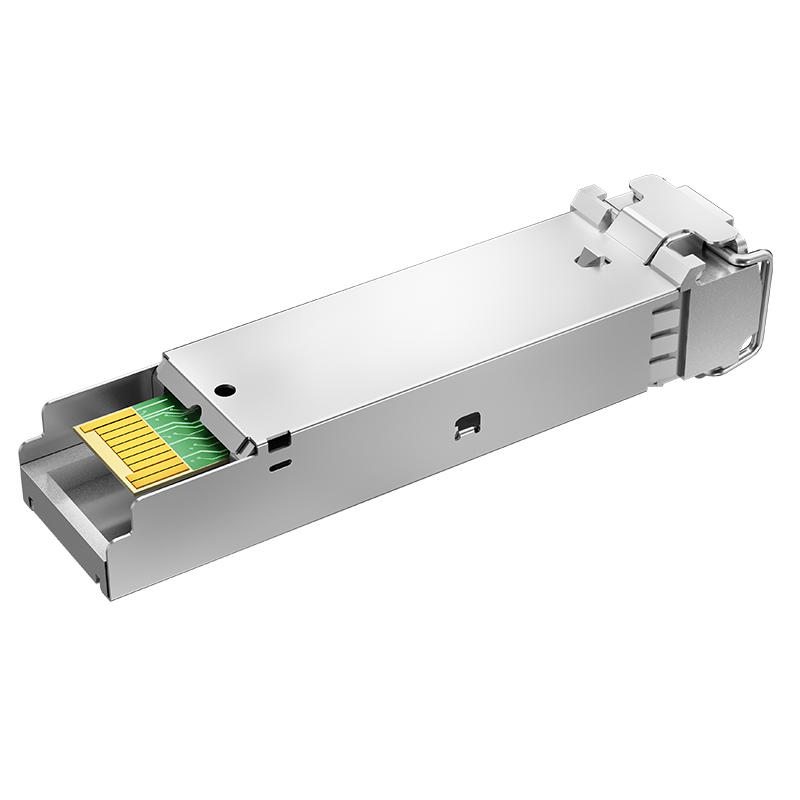

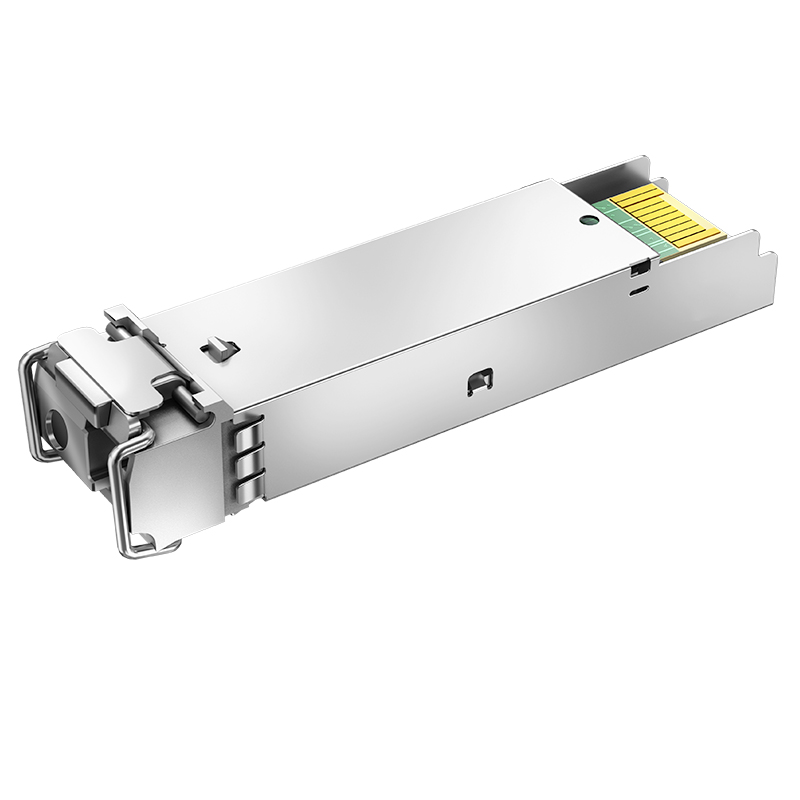

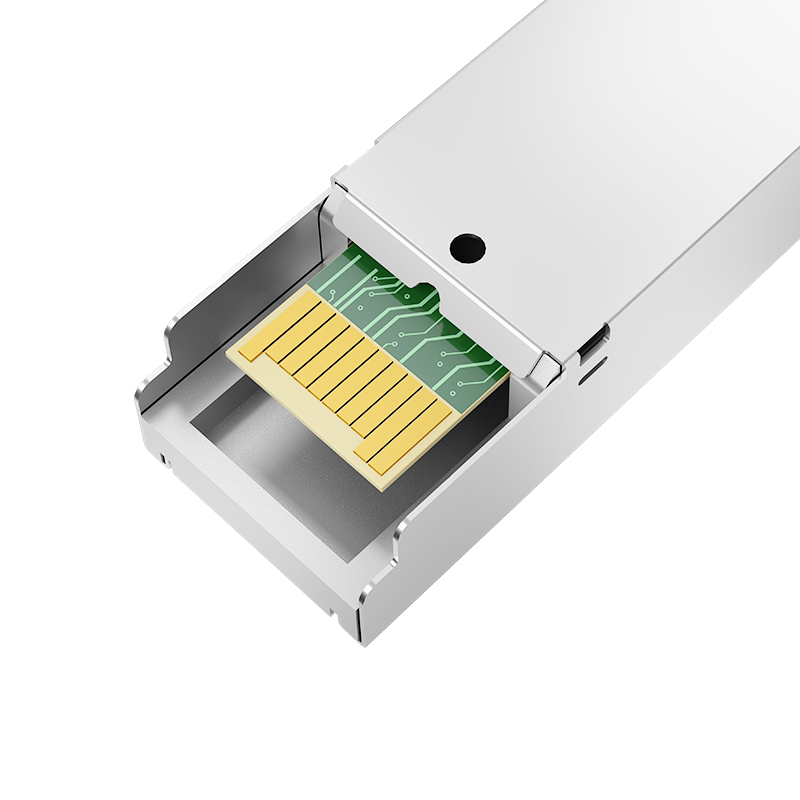

| Parameter | Specification Details |
|---|---|
| Vendor Name | Compatible OEM |

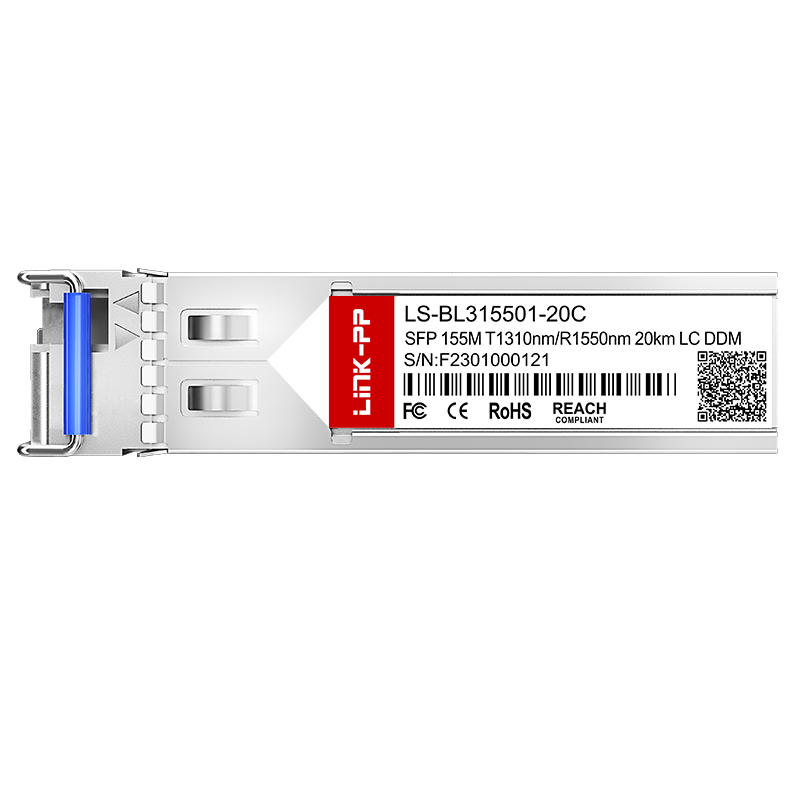

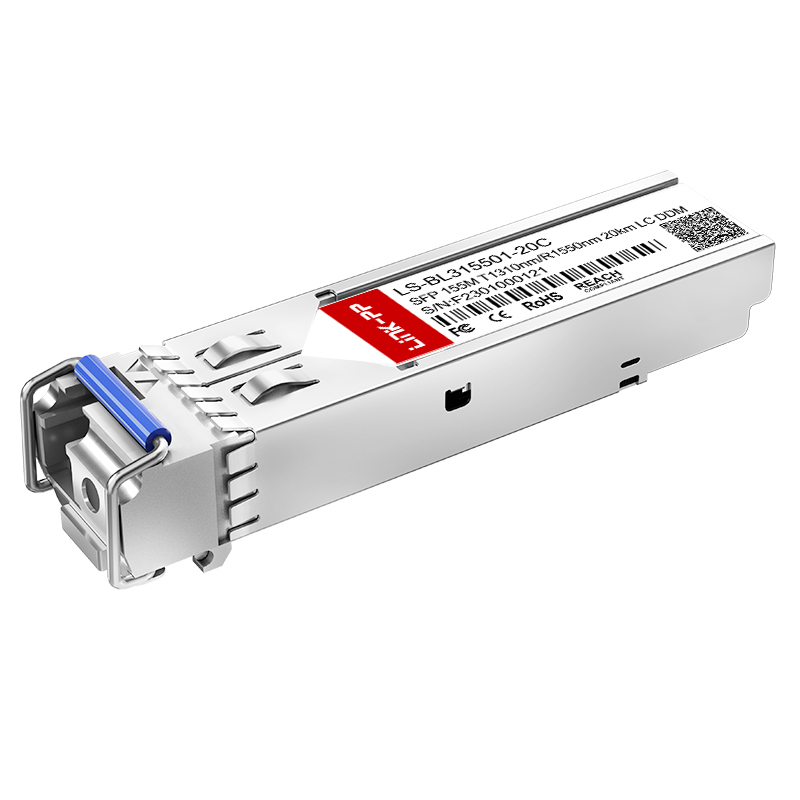

| Part No. | LS-BL315501-20C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 20km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -30dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Model Number | Description |
|---|---|
| LS-MM8501-S5C | SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-MM8501-02C | SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-MM3101-02C | SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM3101-10C | SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM3101-15C | SFP 155M, 1310nm, 15km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM3101-20C | SFP 155M, 1310nm, 20km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM3101-40C | SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM5501-80C | SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM5501-A2C | SFP 155M, 1550nm, 120km, LC, DDM, 0°C-70°C / -40°C-85°C |
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, equipped with advanced manufacturing and testing apparatus imported from abroad. Established in 1997, our workforce consists of approximately 2,000 employees. Supported by a robust monthly production capacity of 3,000K units, we are capable of delivering orders within strict timelines.
Additionally, we offer a comprehensive lineup of optical modules designed for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. Our portfolio also features high-speed optical interconnect systems optimized for cloud computing and ultra-broadband deployment. Integrating state-of-the-art optoelectronic technologies, we design, manufacture, and distribute products globally.
