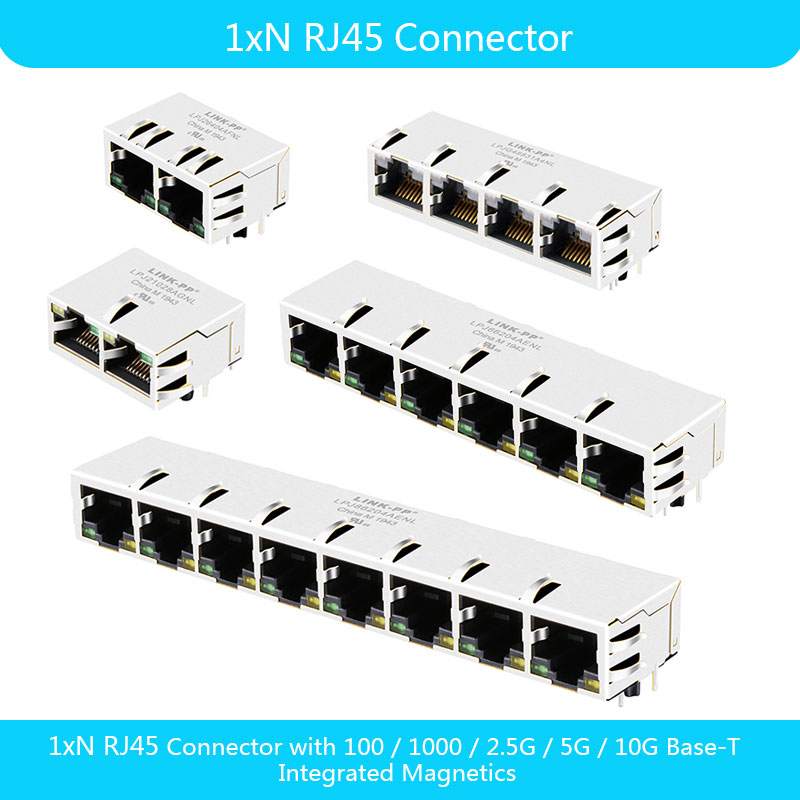

RJ45 Connector with integrated transformer
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet (PoE) up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification

Item Value
Model Number Integrated Connector Modules
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE / Non-PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 1x2, 1x4, 1x6, 1x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

Standard Packaging Configuration:

  • Package Style: Tray
  • Carton Size: 37 * 30 * 30 cm
  • Gross Weight (G.W.): 9 kg / carton
  • Quantity: 600 pcs / carton
  • Standard Pack Qty (SPQ): 30 pcs
  • Net Weight (N.W.): 0.015 kg / pcs
Packaging Details

Manufacturing Facility

Production Process 1
Production Process 2
Production Process 3
Production Process 4
Production Process 5
Production Process 6
Production Process 7

FAQ

1. How is product quality guaranteed?
Quality is maintained by preparing a pre-production sample before starting mass production, followed by a thorough final inspection of all components before shipment.
2. What types of products are available for purchase?
The product range includes RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
3. What standards and certifications do these connectors comply with?
The items are compliant with standards including IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. In addition, they are certified under SGS, ISO9001:2008, UL, REACH, and CE.
4. What speeds and power ranges do these RJ45 connectors support?
These connectors support data transmission rates up to 10 Gbit/s (10/100/1000/2.5G/5G/10G Base-T, AutoMDIX) and support Power over Ethernet (PoE) up to 50 Watts.
5. What is the operating temperature range for these components?
The connectors are built to withstand standard operating environments ranging from 0°C ~ 70°C, and industrial-grade environments from -40°C ~ +85°C.
6. What terms of delivery and payment options are accepted?
Accepted delivery terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Supported payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF via methods like T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, and Escrow.
