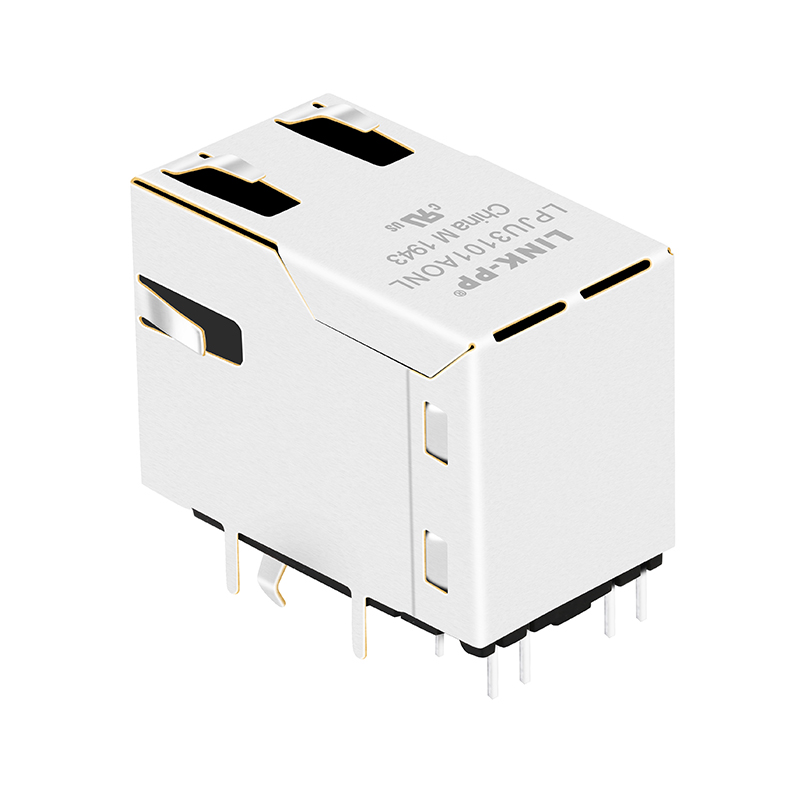

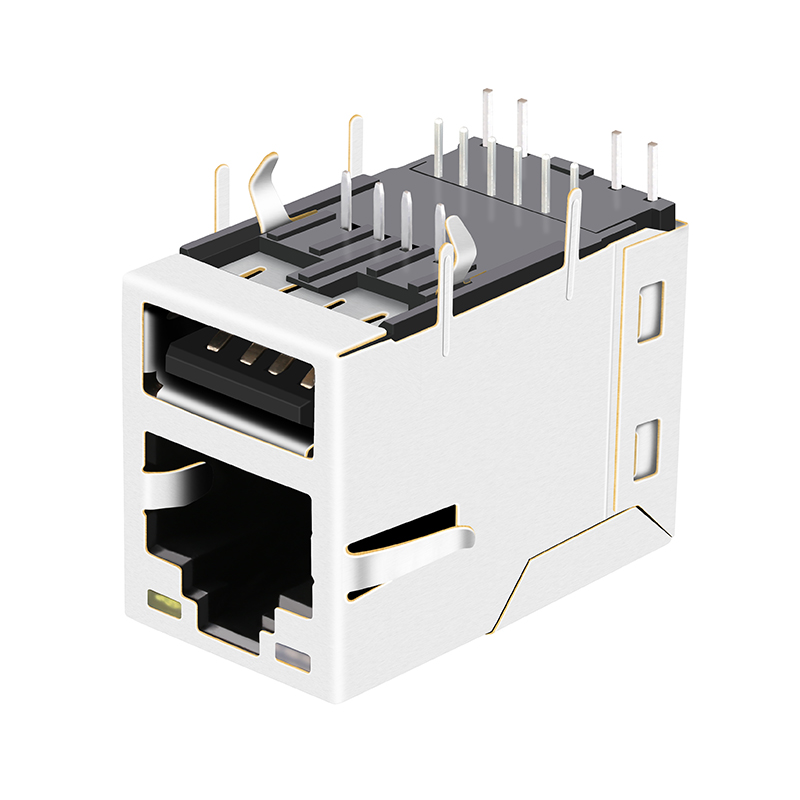

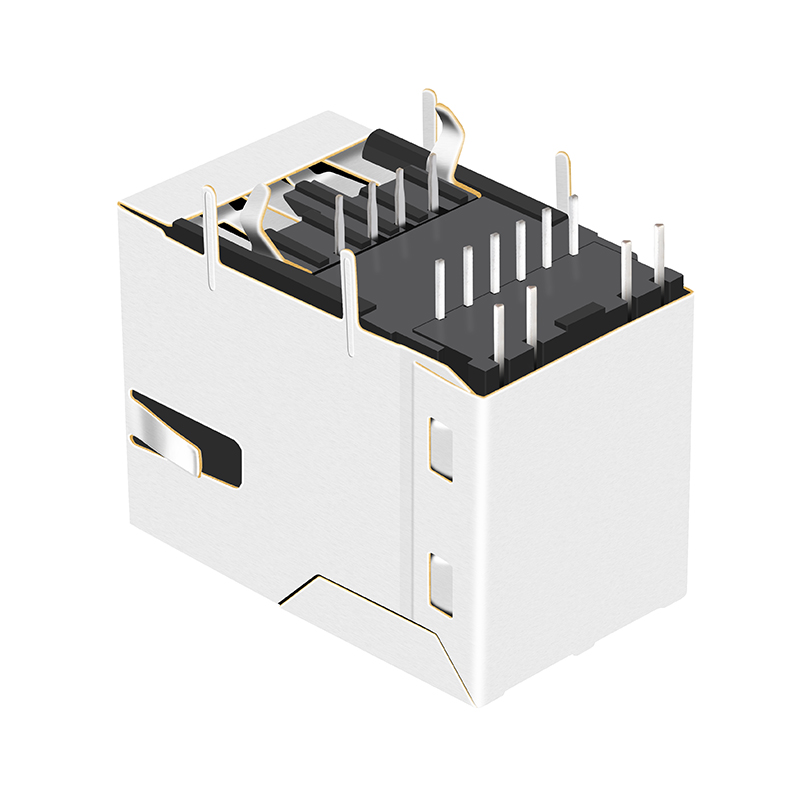

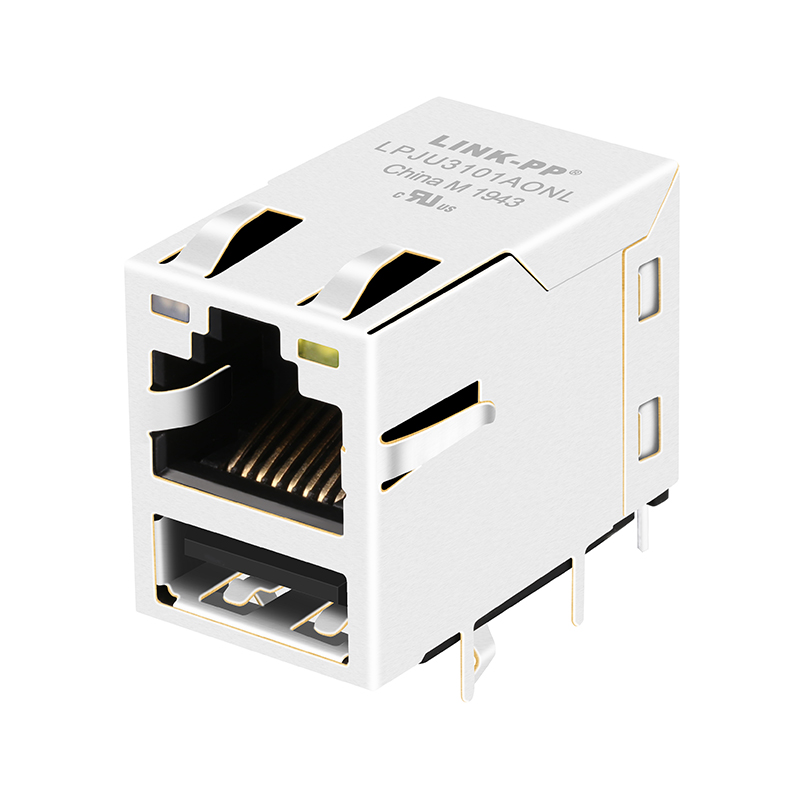

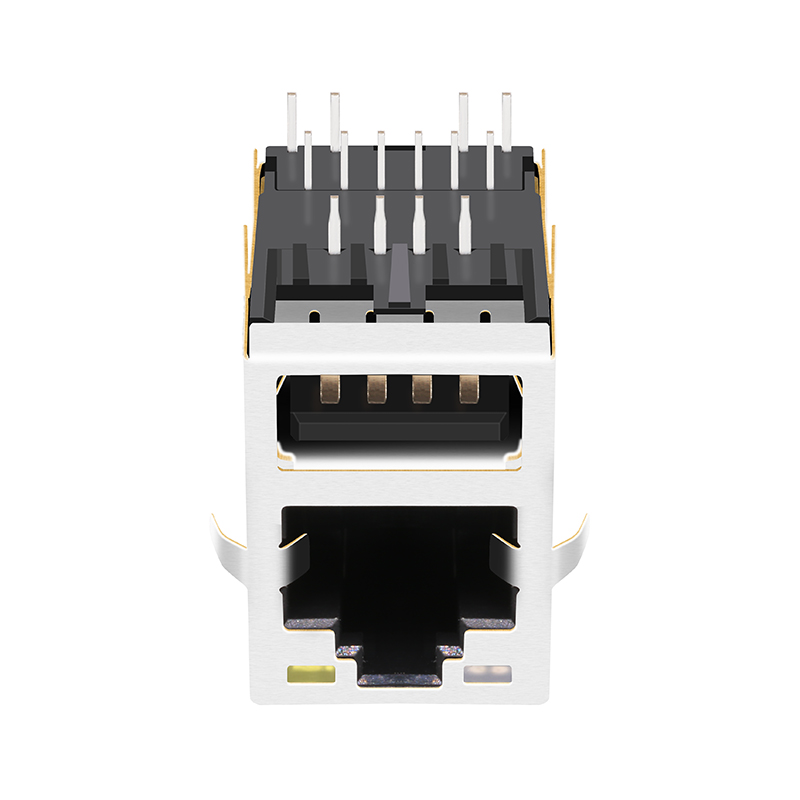

Tab up 10/100 Base-t RJ45 Magjack Magnetic Ethernet Female RJ45 Connector With USB

Product Description

Tab Up 10/100 Base-t RJ45 Magjack Magnetic Ethernet Female RJ45 Connector With USB
RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJU3101AONL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specifications Detail
Explore Our Diverse Range of RJ45 Connector Options
Product Categorization Map
Product Dimensional Schematic
Electrical Schematic Diagram
Product Manufacturing Process
Quality Inspection Controls
Testing and Validation Lab
Packaging Standard Layout
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. We support global markets with an extensive line of state-of-the-art catalog products as well as custom capabilities. As a reliable supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve over 10,000+ customers across 200 countries. By building multi-warehouse networks in key regions and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformers.
Automated Manufacturing Floor
Assembly Line Processing
Warehouse and Logistics
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, among others.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
3. What is your delivery time?
Items in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
4. What after-service support do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss the details of your specific requirements.
6. What are your key advantages?
With over 19 years of dedicated production experience, we have established long-term partnerships with leading global technology and electronics contract manufacturers.
