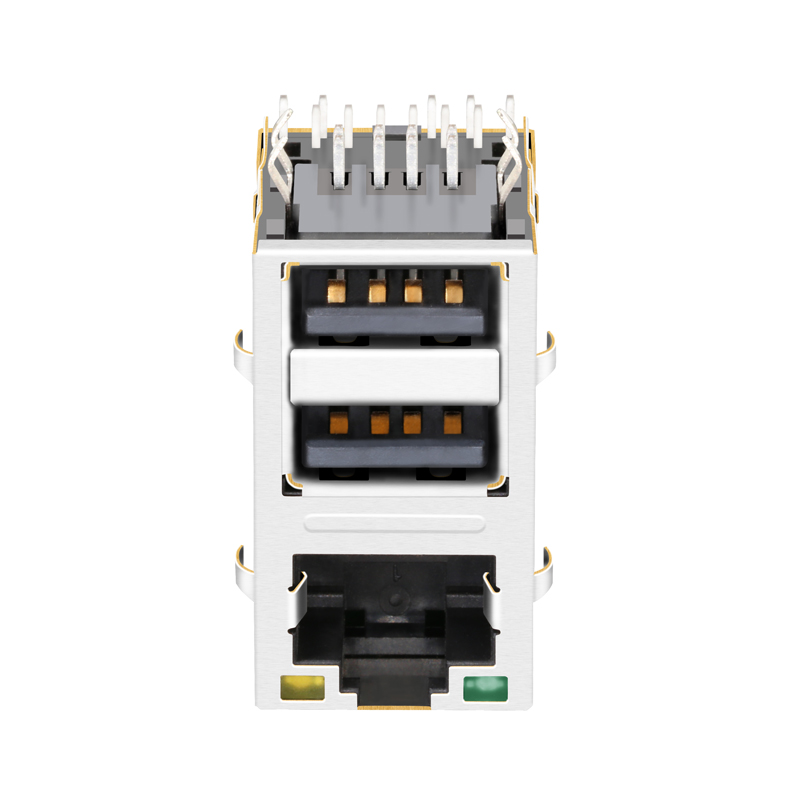

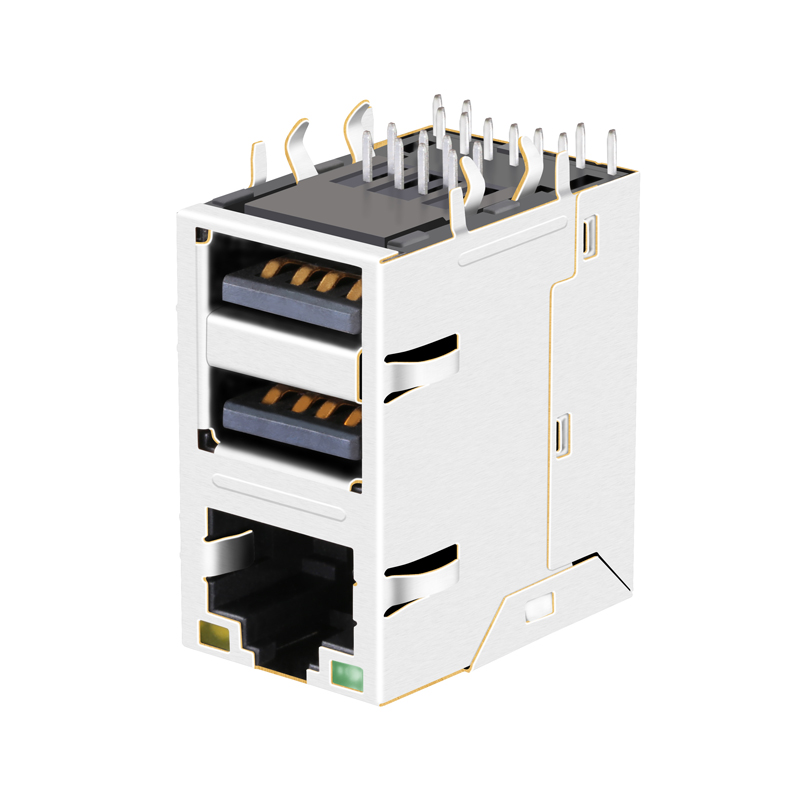

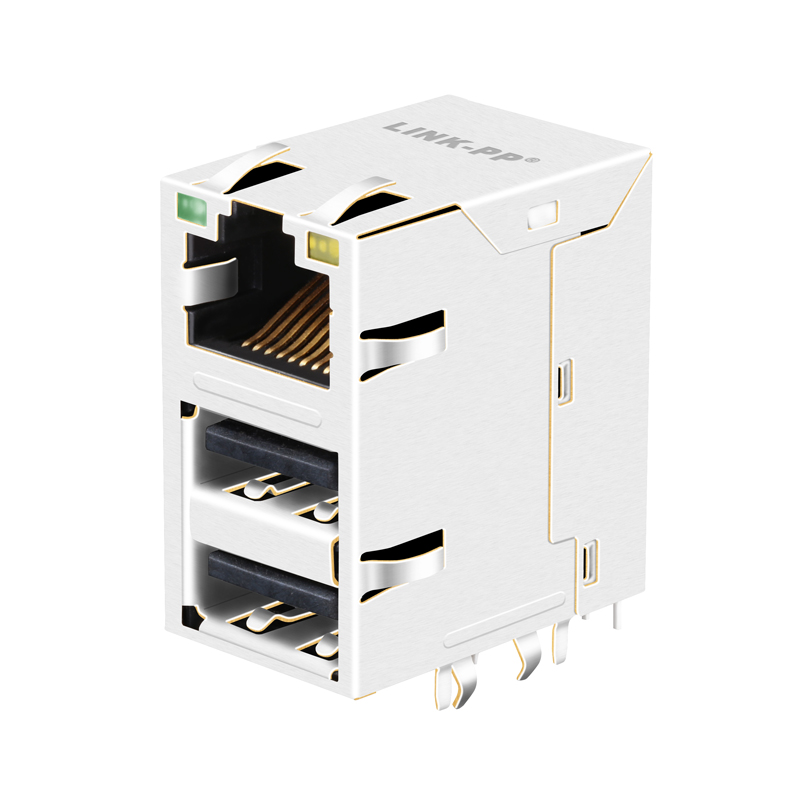

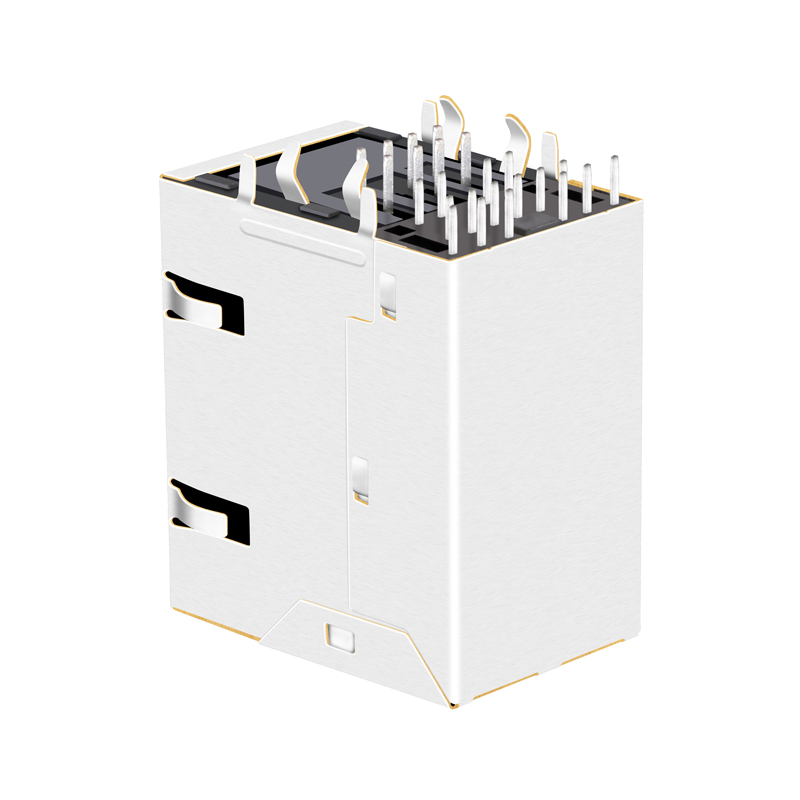

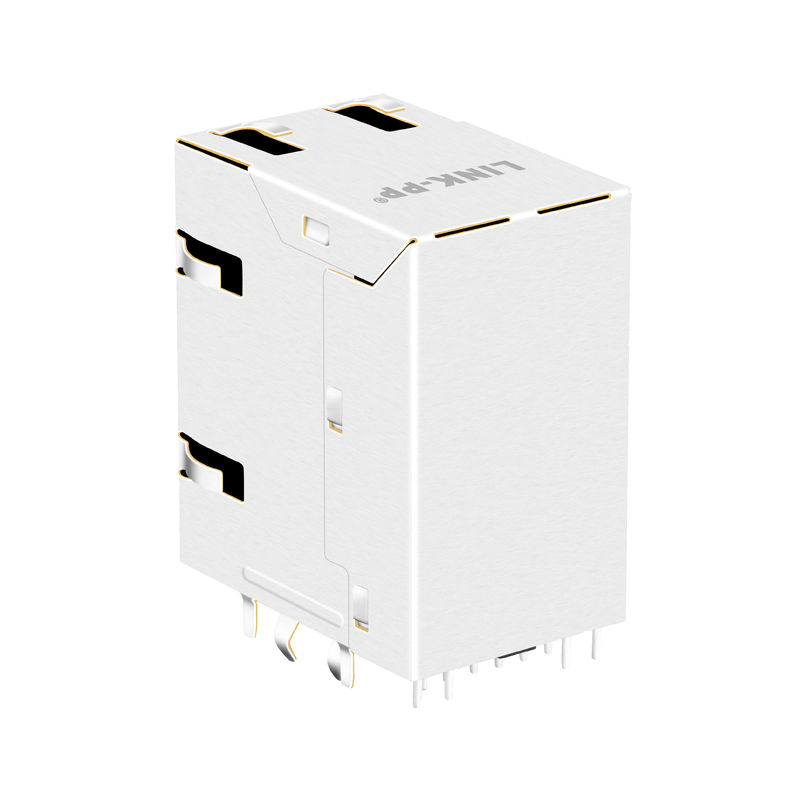

One Port with USB RJ 45 Mag-jack HR872635H HR981121C
| Item |
RJ45 Female Connector |
| Compatible With |
HR872635H HR981121C |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
Single Port With USB |
| Speed |
10/100/1000 Base-T |
| Latch |
Down/Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without/With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
☞
Click Below Products To Get More
☜
Established in 1997, the company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Frequently Asked Questions
?
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
?
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid by your side.
?
3. What is your delivery time?
Ready to ship items are dispatched directly from stock, and it takes 15-30 days for mass production orders.
?
4. What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
?
5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiries to us so we can proceed with a detailed discussion regarding custom projects.
?
6. What is your advantage?
With 19 years of manufacturing experience, we have established long-term partnerships with leading global technology corporations.
