Home > Multi Port RJ45 Connector > LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

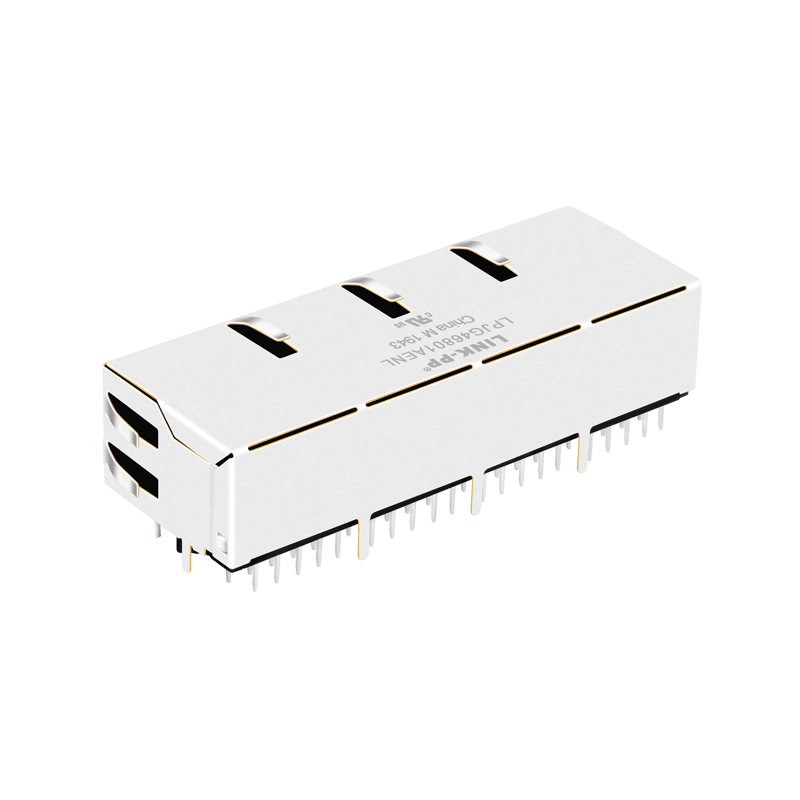

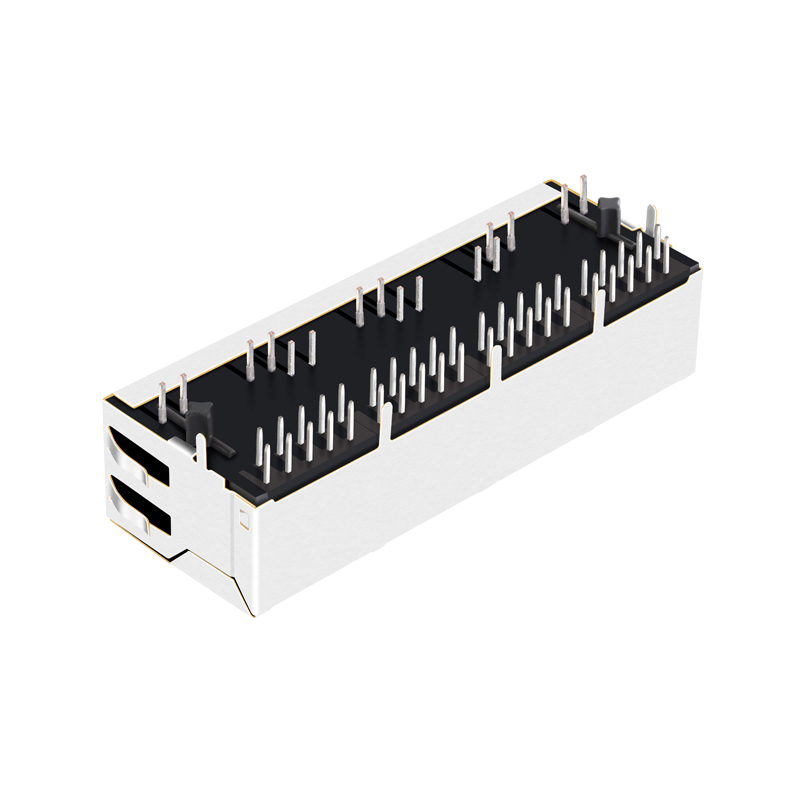

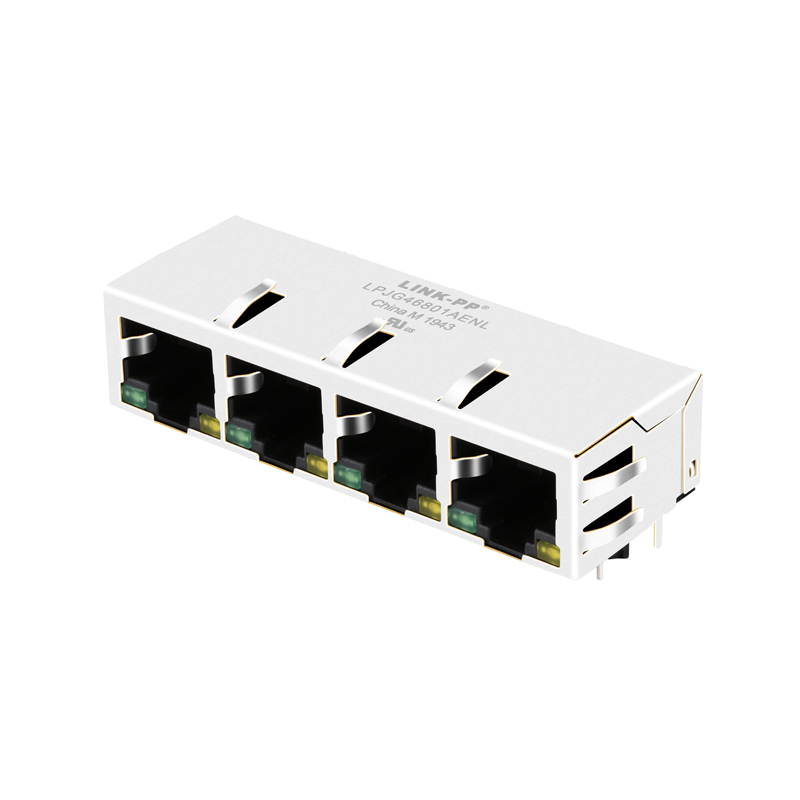

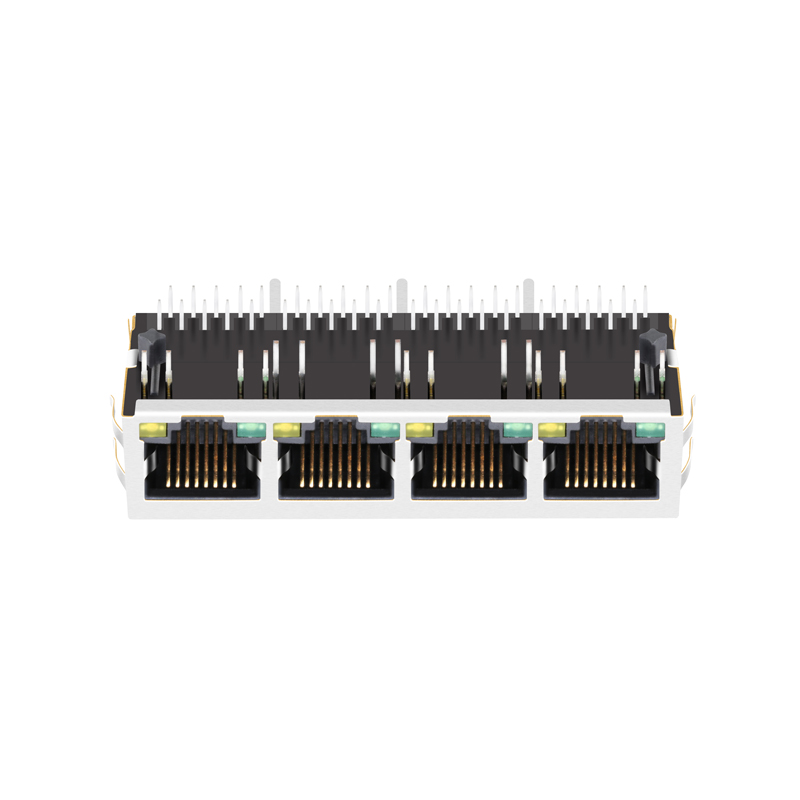

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description
Product Description Image 1

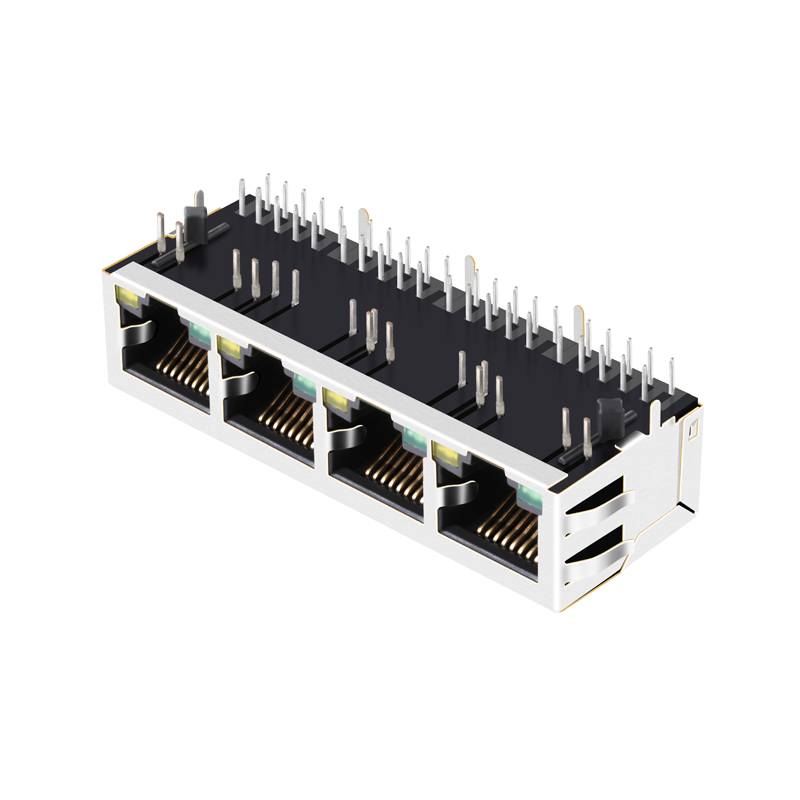

Product Description Image 2
Specification
Item Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery

The Part Number package: 20 pcs in 1 tray, 20 tray in 1 carton, which is 37*30*30cm, 10KGS (400pcs) of each carton.

Packing Image
Application Details Image
100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
Applications: Suitable for industrial temperatures from -40 °C up to +85 °C. Compatible with Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC's for Ethernet applications such as Microchip, Broadcom, Marvell, Hubs, Routers, Switches, IP cameras, and IoT applications.
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
FAQ
1. What applications are these RJ45 connectors suitable for?
They are ideal for 10/100/1000 Base-T, AutoMDIX applications and are compatible with Industrial Ethernet systems like EtherCAT or Profinet. They are widely used in Hubs, Routers, Switches, IP cameras, and various IoT devices.
2. How is product quality guaranteed?
Quality is maintained through strict manufacturing standards, which include providing a pre-production sample before mass production and conducting a comprehensive final inspection prior to shipment.
3. What are the key certifications for these products?
The components are built in compliance with internationally recognized quality and environmental standards, including ISO9001, RoHS, REACH, CE, and UL certifications.
4. What are the standard shipping packaging details?
Typically, products are packed with 20 pieces per tray, and 20 trays per carton (400 pieces total). The standard carton dimensions are 37*30*30 cm, weighing approximately 10 KGS.
5. Which IC manufacturers are these connectors compatible with?
They are engineered to be fully compatible with most Ethernet IC chips on the market, including those from Microchip, Broadcom, and Marvell.
6. What delivery and payment options are available?
Accepted delivery terms include FOB, CFR, CIF, EXW, DDP, DDU, and Express Delivery. Payments can be processed in multiple currencies (USD, EUR, GBP, CNY, etc.) via T/T, L/C, PayPal, Western Union, and other common methods.
