RJHSE-5085 without Transformer Jack RJ45 Female Connector

Product Description

RJ45 Female Connector Showcase
RJHSE-5085 without Transformer Jack RJ45 Female Connector
📋 Products Description
Item RJ45 Modular Jack
Reference Part Number A LPJE101NNL
Reference Part Number B RJHSE-5085
Part Status Active
Connector Type Jack
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

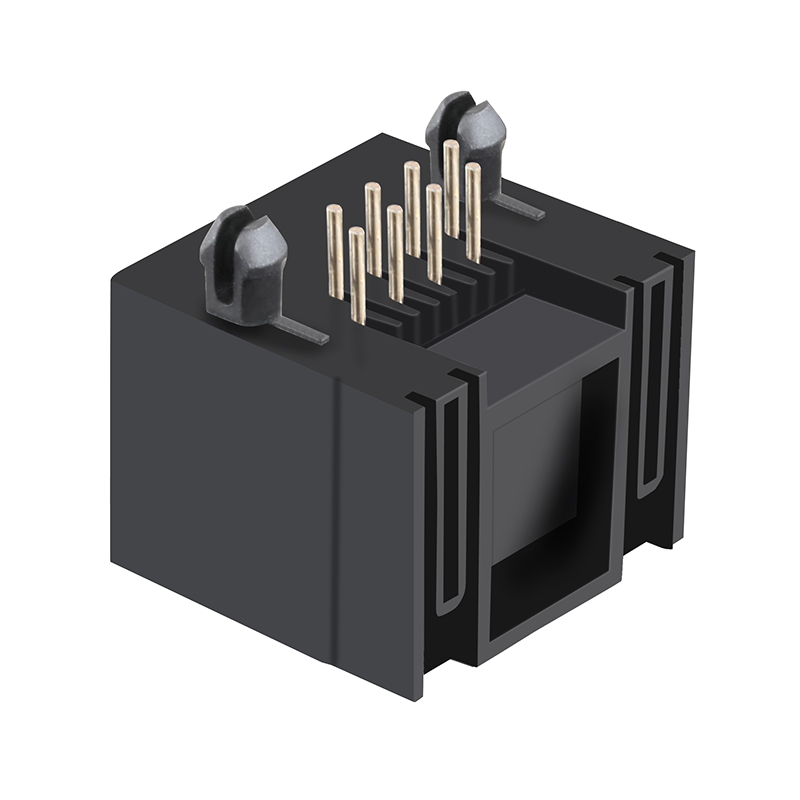

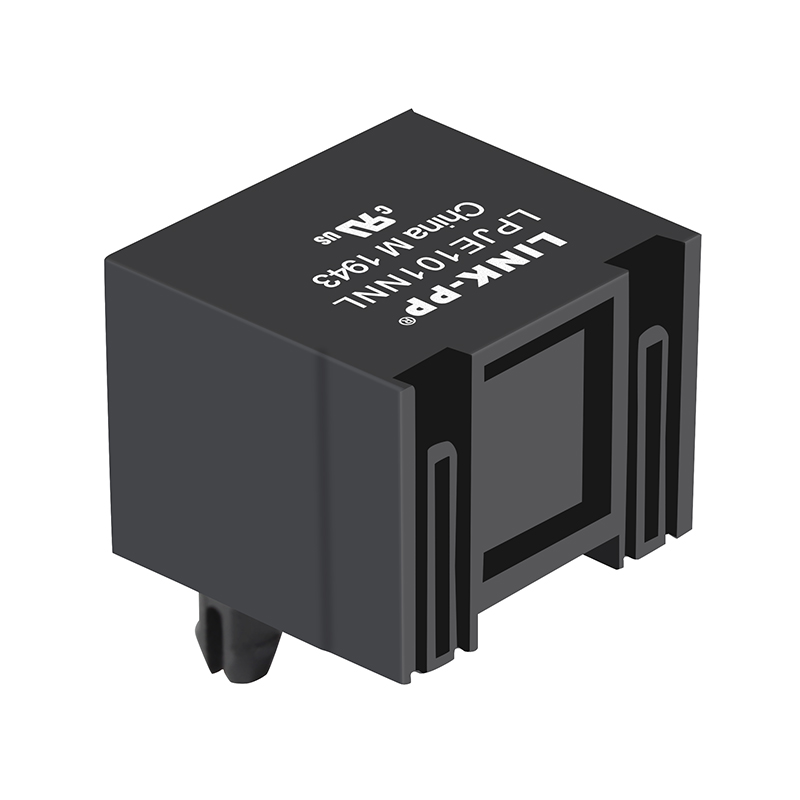

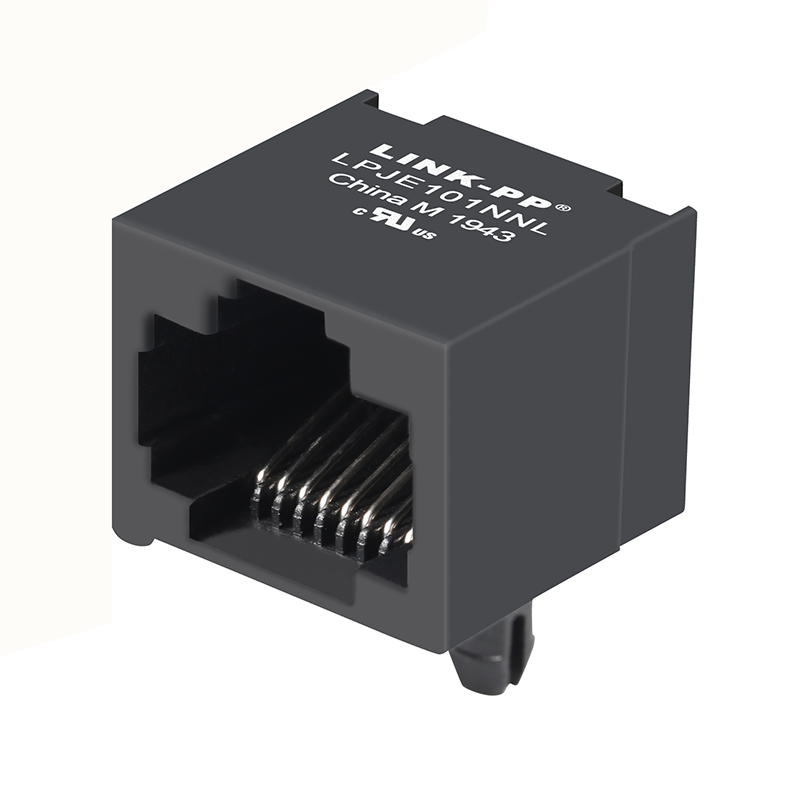

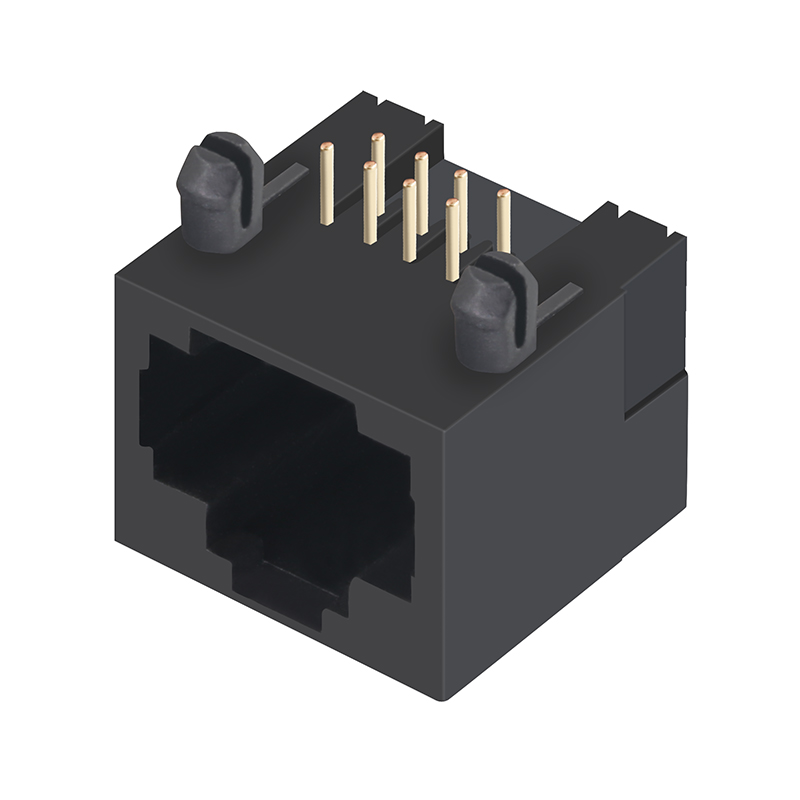

Product Angle View 1
Product Angle View 2

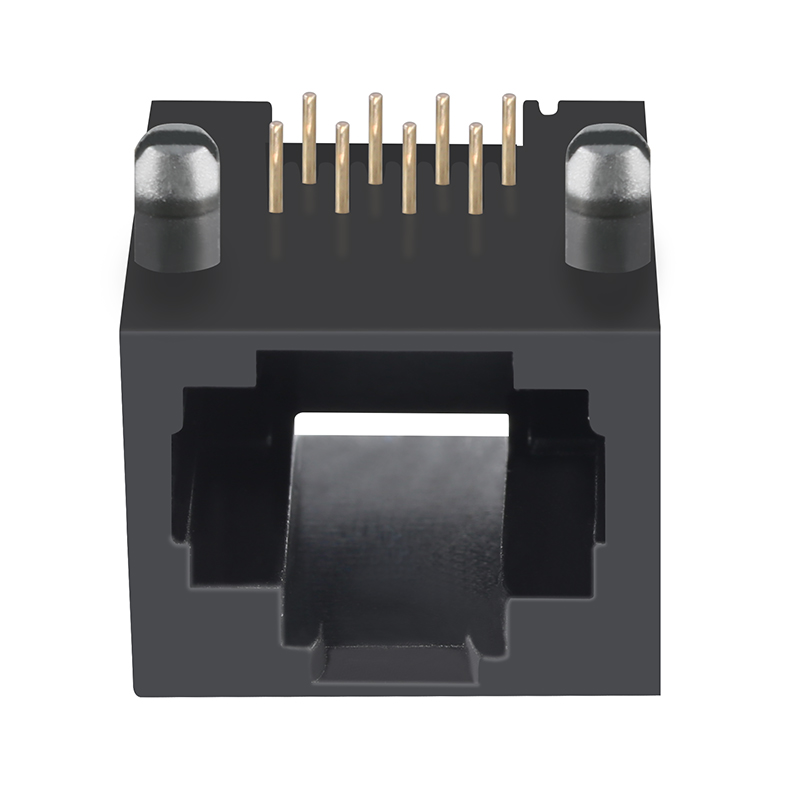

Product Angle View 3
Dimension Schema 1
Dimension Schema 2
Dimension Schema 3
Dimension Schema 4
🔍 Explore Our Complete Product Ranges Below
Product Line Category Map
Technical Specifications Sheet 1
Technical Specifications Sheet 2
Technical Specifications Sheet 3
Application Interface Diagram 1
Application Interface Diagram 2
Application Interface Diagram 3
🏢 Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom design capabilities, we serve as a global supplier of networking components to OEMs, contract manufacturers, and CEMs worldwide. Supplying more than 10,000+ customers across 200 countries, we maintain warehouse systems in key regions to optimize inventory and ensure stable supply chain services. We are fully committed to providing top-quality Ethernet RJ45 connectors and LAN transformer solutions globally.
Manufacturing Facility 1
Manufacturing Facility 2
FAQ
Q1: Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping cost will need to be covered by the recipient.
Q3: What is your typical delivery time?
For in-stock items, they are ready to ship immediately. For mass production orders, the lead time is generally 15 to 30 days.
Q4: What after-sales service and warranty do you offer?
We provide a one-year warranty period along with 24-hour online technical support to assist you with any concerns.
Q5: Can you accept OEM/ODM orders?
Yes, we support custom configurations. Please send us your specifications so we can initiate a detailed discussion.
Q6: What are your main manufacturing advantages?
We have over 19 years of production expertise in the networking hardware industry and serve as an established component supplier for leading global technology firms.
