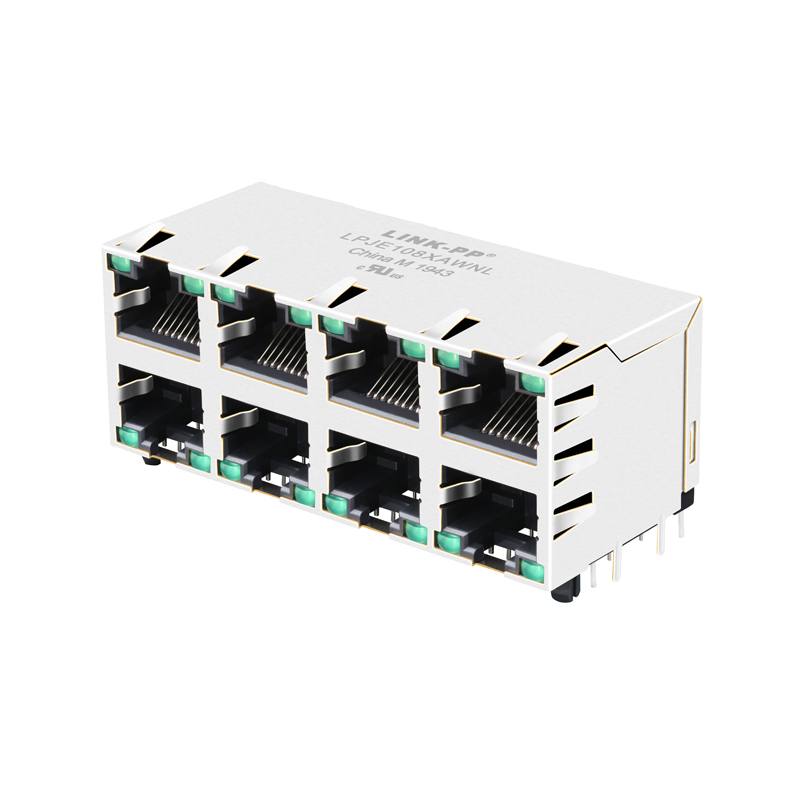

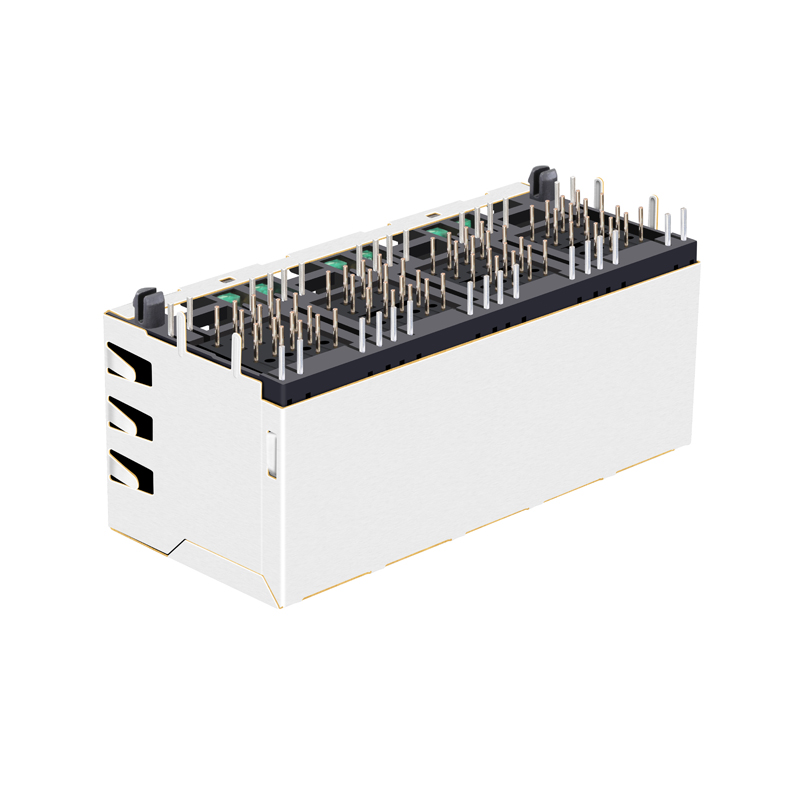

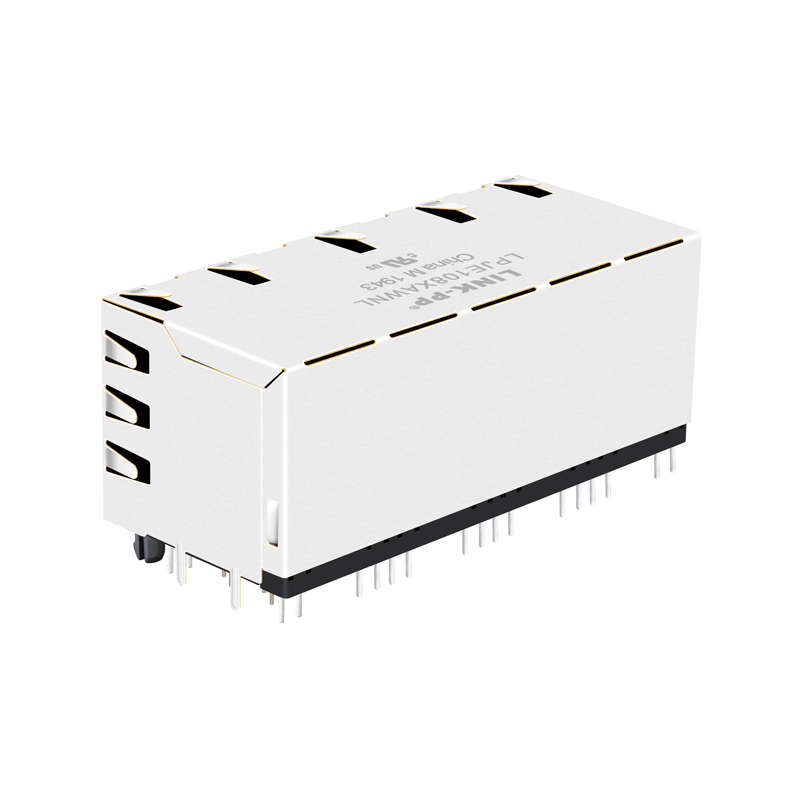

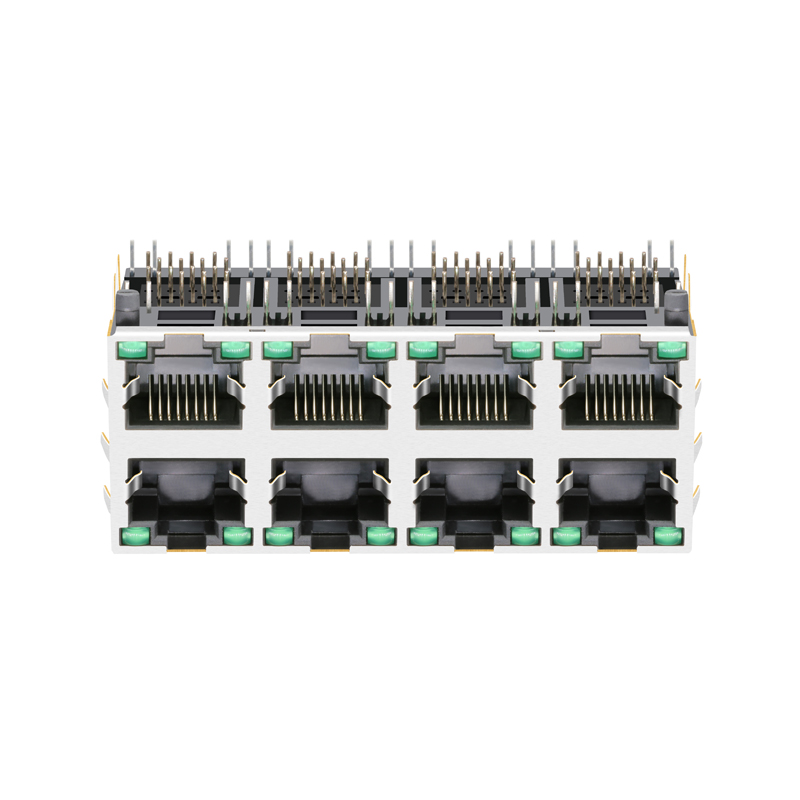

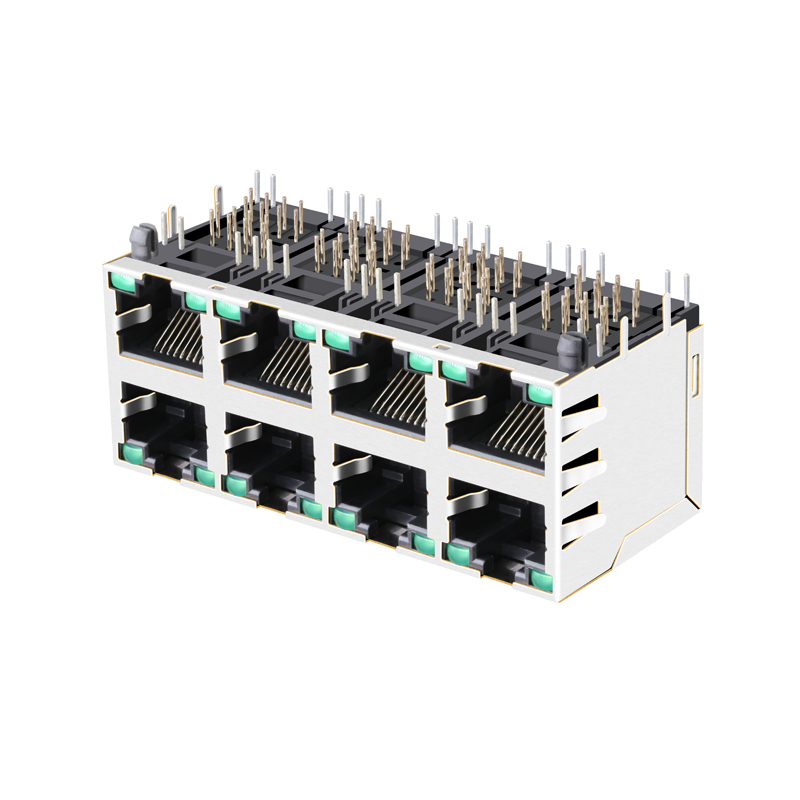

RJSAE-5385-08 withoout Transformer Shielded 2X4 Port RJ45 Modular Jack

Product Description

RJ45 Connectors and Modules
RJSAE-5385-08 Without Transformer Shielded 2X4 Port RJ45 Modular Jack
Products Description
Item RJ45 Female Connector
Compatible With RJSAE-5385-08
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x4 Port
Speed Without Magnetics
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Modular Jack Details
Explore our wide range of modular connector products below
Product Categories
Technical Dimension Drawing
Technical Specifications
Product Layout Diagram
Electrical Parameters
Quality Standard Verification
Production Standards
Company Profile

Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.

Manufacturing Center
Precision Assembly Line
Testing Equipment
Frequently Asked Questions
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs will need to be covered by the customer.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while custom or mass production orders typically take 15 to 30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support to assist you with any questions.
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please send your design inquiry to us so we can discuss the requirements in detail.
6. What is your manufacturing advantage?
We have 19 years of dedicated production experience and have established long-term partner relationships with global industry leaders such as Intel and Jabil.
