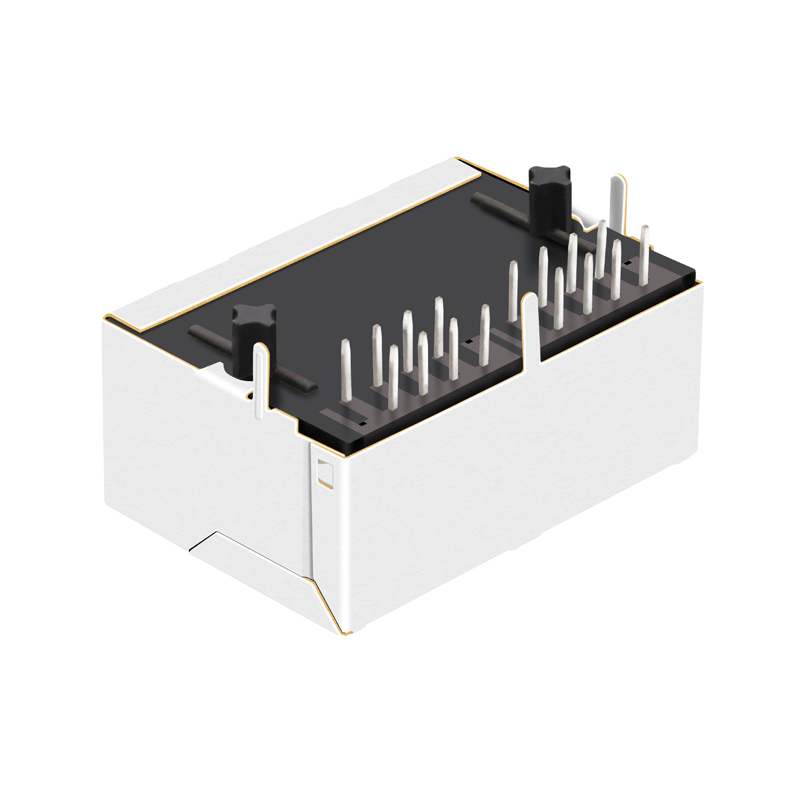

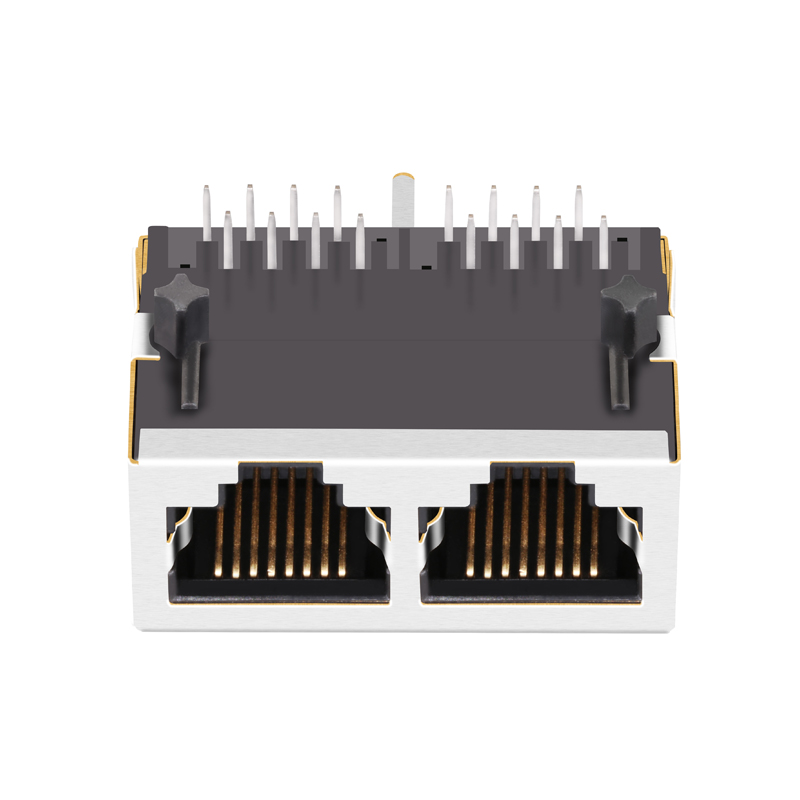

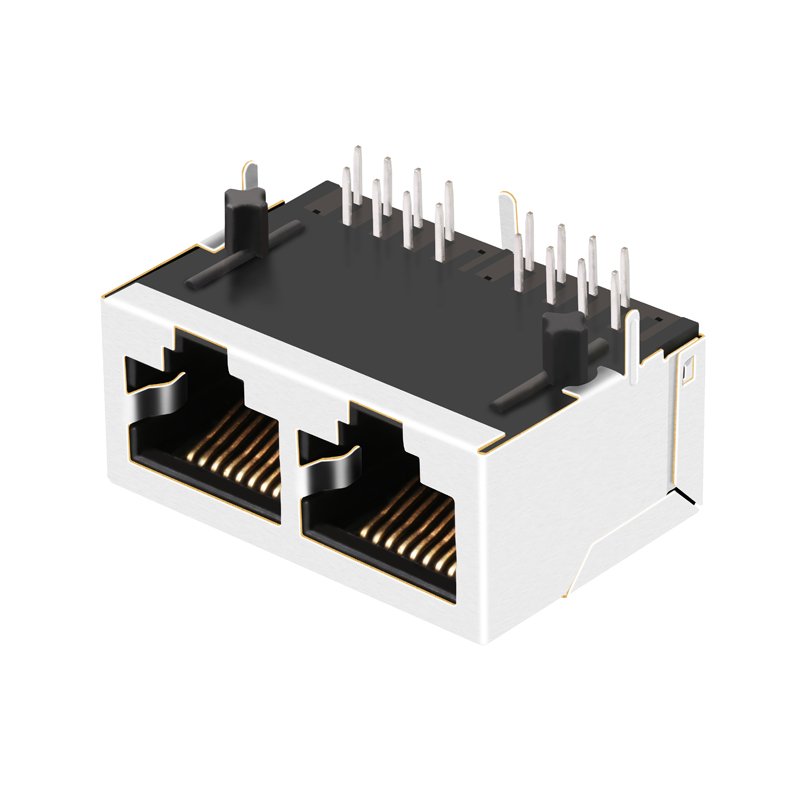

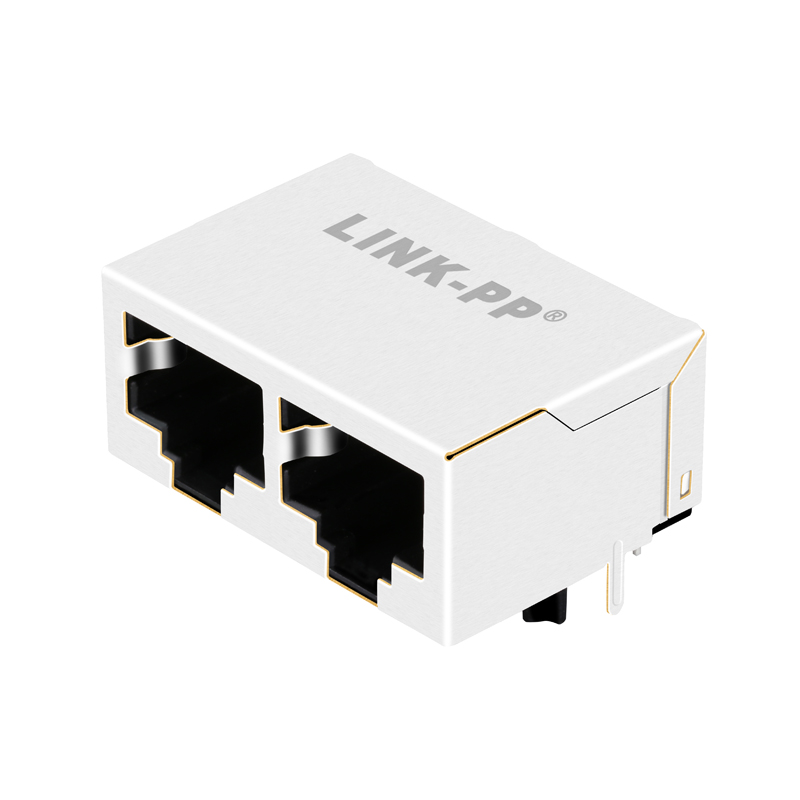

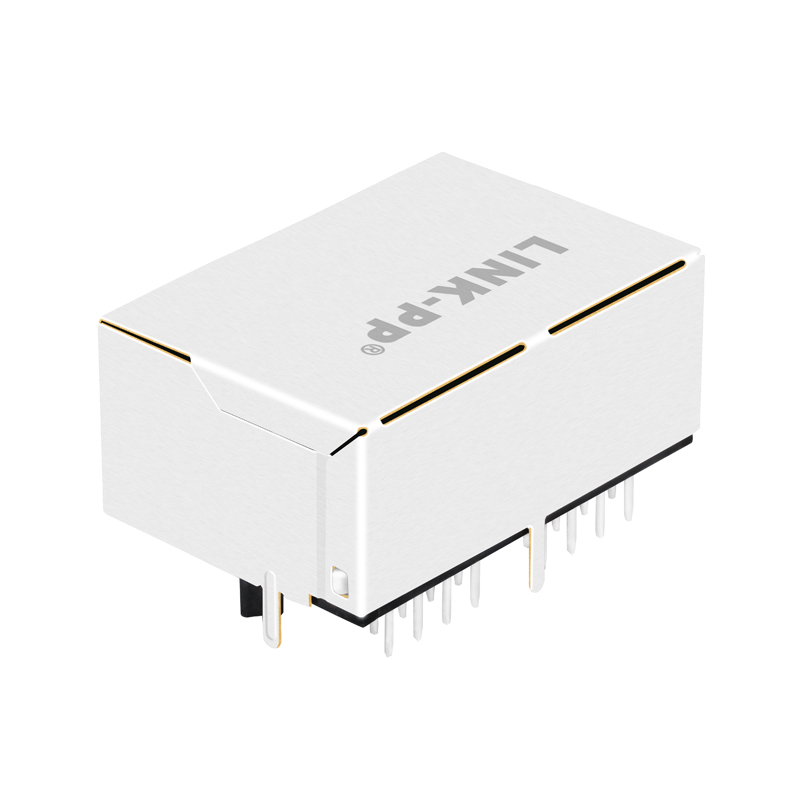

Without Integrated Magnetics 1x2 Port RJ45 Female Connector

Product Description

RJ45 Female Connector Series
Without Integrated Magnetics 1x2 Port RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Compatible With 10118061-5005010LF
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Technical Drawing
Click Below Products Link To Get More
Product Categories Overview
Product Details Dimensions
Side View Dimension
PCB Layout Pad
Product Testing Diagram
Contact and Inquiries
Production Process
Quality Standards Banner
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Internal View
Automated Production Line
Testing and Quality Lab
FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, with shipping costs covered by the buyer.

3. What is your delivery time?

We have ready-to-ship stock for standard products, and mass production order lead times range from 15 to 30 days.

4. What after-service can you offer?

We provide a one-year warranty period and offer online technical support 24 hours a day.

5. Can you accept OEM/ODM orders?

Yes, we welcome OEM and ODM orders. Please send your inquiries to our team for a detailed discussion.

6. What is your advantage?

We have 19 years of professional manufacturing experience and have partnered with global industry leaders for many years.
