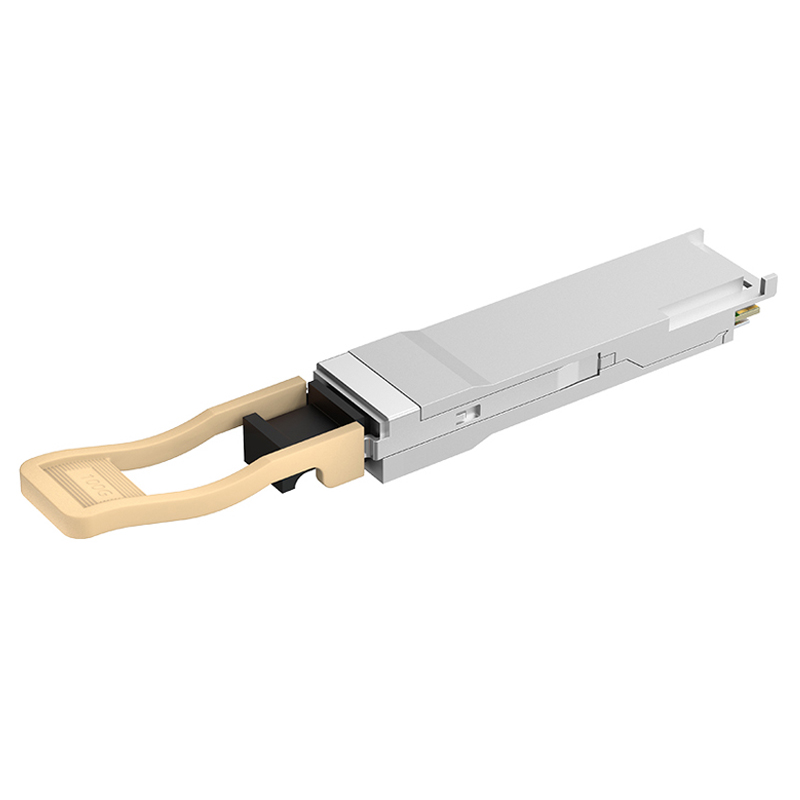

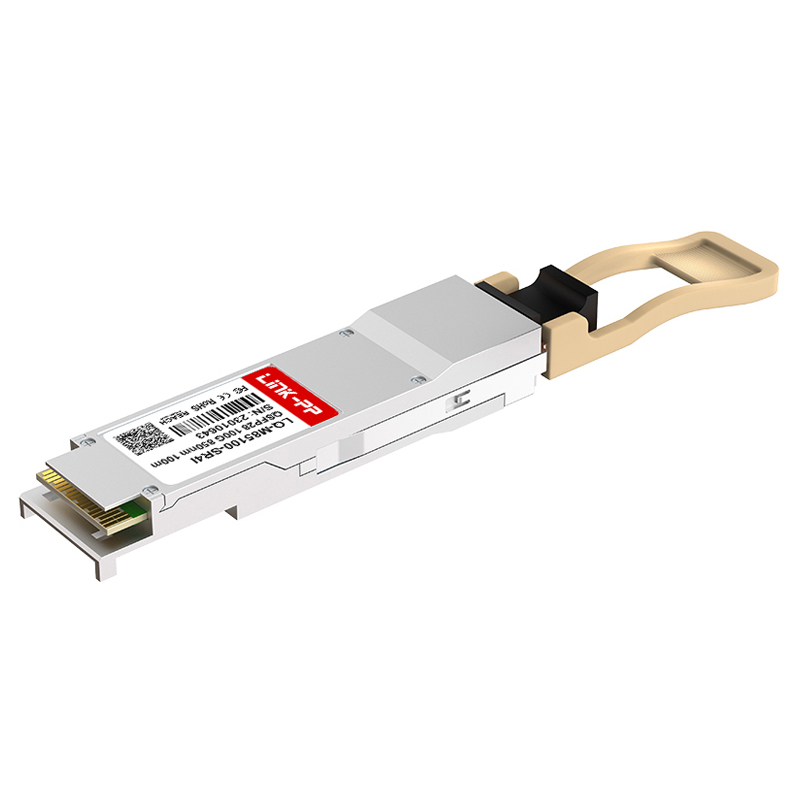

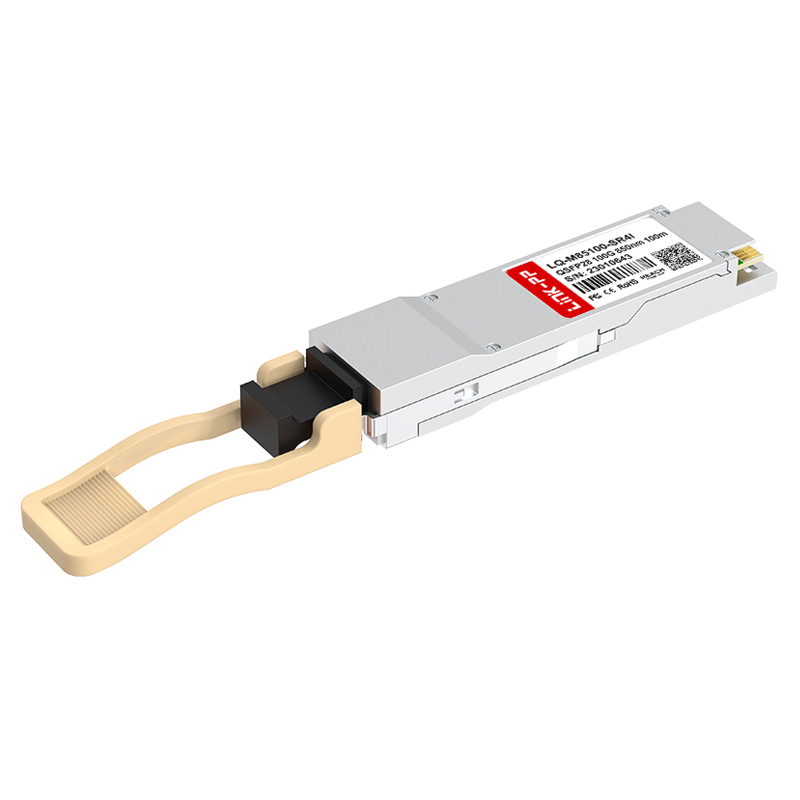

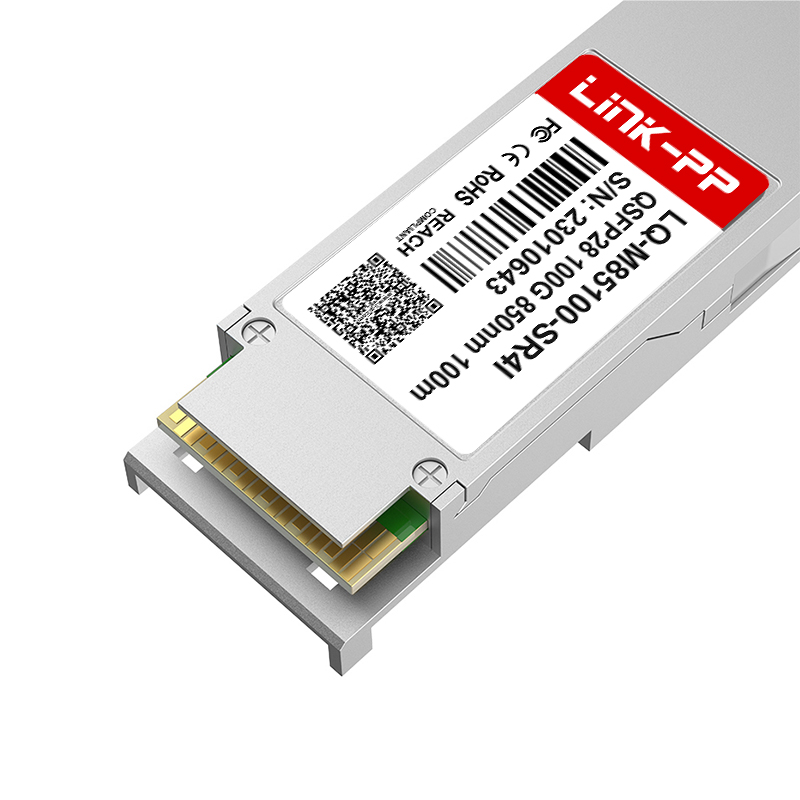

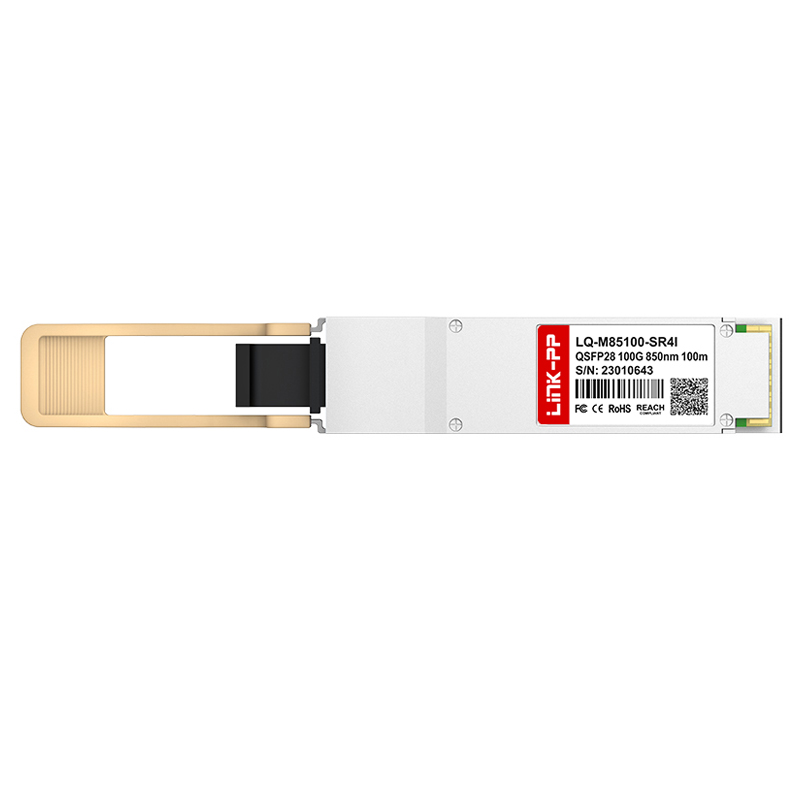

QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
1 / 5
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module

QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module

Send Inquiry

Product Description

QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP
Max Data Rate 103.125Gbps (4x 25.78Gbps)
Max Cable Distance 70m@OM3/100m@OM4
Wavelength 850nm
Connector MTP/MPO-12
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Transmitter Type VCSEL 850nm
TX Power -8.4~2.4dBm
Receiver Sensitivity <-10.3dBm
Powerbudget 1.9dB
Receiver Overload 2.4dBm
Power Consumption ≤2.5W
Extinction Ratio >3dB
DDM/DOM Supported
Warranty 5 Years
Sample Available
Protocols IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module
Technical Layout
Production Process
Application Diagram
Interface and Module Types
Equipment Compatibility
Detailed Parameter Display 1
Detailed Parameter Display 2
♨ Related Products SFP Cage ♨
Related SFP Cage Products
Why Choose Us
Quality Standard Assurance
Advanced Testing Laboratory
Automated Manufacturing Lines
International Certificates Support
FAQ
Q1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered.
Q3. What is your delivery time?
Ready to ship for stock items and 15-30 days for customized mass production.
Q4. What after-sales service do you offer?
We provide a one-year warranty period and offer technical support online 24 hours.
Q5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your needs.
Q6. What is your advantage?
We possess over 19 years of production experience and high manufacturing capability to deliver high-quality global standard network components.
